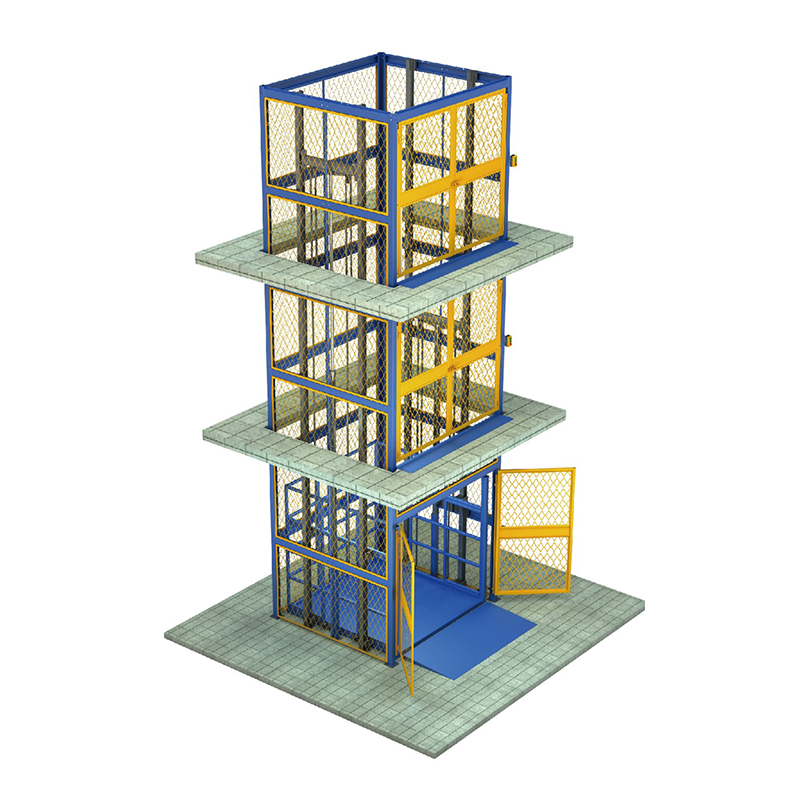

Features:
· Designed for workshops with 2-4 storeys at the height of 4.6-14 meters.
· With a lifting capacity of 1 -3 tons, it can be designed with customized panels according to the size requirements, and installed with or without the hoistway to realize high utility rate of space.
· Mature and stable structure, low failure rate in high frequency use.
· It is designed by floors, and each floor is equipped with a safety switch.
· Functional modules such as automatic roller and door are optional, and connection to AGV isavailable.
· Safety modules such as extrusion and anti-shearcan be added.
· Easy to use, easy maintenance and low cost.
· It is suitable for workshops and warehouses witha floor height of less 14 meters in all walks of life.It can be used as a freight elevator, and can also be connected to automated devices.
| Lifting capacity | 1T | 2T | 3T | |
| Fuel type | 2000×2000 | 2300x2000 | 2800×2300 | |
| Motor power | 4.6-8.9m | 2.2kw | 3.75kw | 5.5kw |
| 9-14m | 3.75kw | 5.5kw | 7.5kw | |
| Power supply | AC380V 50HZ three-phase four-wire | |||
| Operating speed | 6m/min for rise,adjustable for fall | |||
| Door type | Manually operated double door | |||
| Guardrall height | 2m | |||
| Outer frame | Optional | |||
| Drlving mode | Motor+hydraulic cylinder+chain | |||
| Control mode | Relay or PIC | |||
