Lift tables are a cornerstone of modern industry, providing the muscle needed to safely raise and lower heavy loads in warehouses, workshops, and production lines. While they may seem like simple platforms, the engineering behind them is both clever and crucial for ensuring operational safety and efficiency. But how exactly do these powerful machines operate?
This guide breaks down the mechanics of lift tables. We'll explore the core components, the different power sources that drive them, and how they come together to make heavy lifting look easy. By the end, you'll have a clear understanding of the principles that make these tools indispensable for countless businesses.

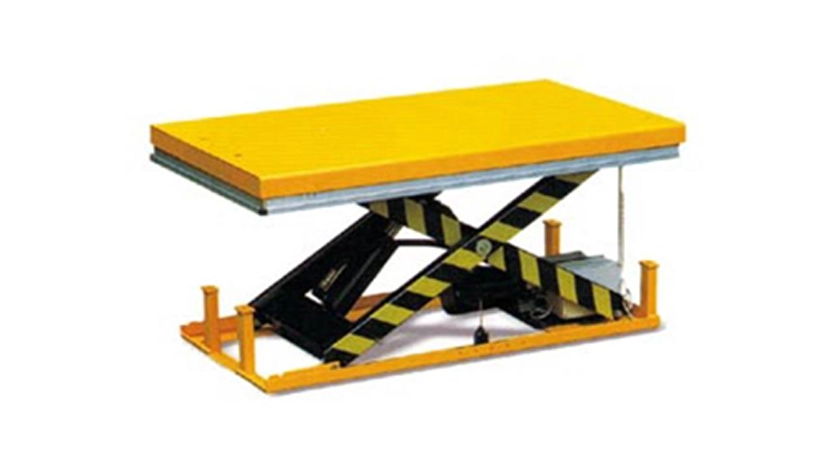

At its core, a lift table is a device used to raise or lower goods and materials to different heights. It typically consists of a top platform, a base, and a "scissor" mechanism that provides the vertical movement. This design offers a stable and secure way to handle loads that are too heavy or awkward for manual lifting, reducing the risk of workplace injuries and improving productivity.
From ergonomic workstations that adjust to an operator's height to massive industrial platforms that can hoist entire vehicles, lift tables come in various sizes and capacities. A popular variation is the Lift Table Truck, which combines the vertical lifting capability with mobility, allowing a single person to transport and position heavy items with ease.
To understand how lift tables work, it helps to know their main parts. While designs vary, most hydraulic and electric lift tables share these fundamental components:
· Platform: This is the flat top surface where the load is placed. It can be customized with features like turntables, conveyor rollers, or specialized grips depending on the application.
· Base: The base provides a stable foundation for the entire unit. It rests on the floor and houses many of the table's operational components. In a Lift Table Truck, the base is fitted with wheels for mobility.
· Scissor Legs: The crisscrossing "scissor" arms are the heart of the lifting mechanism. As these legs are drawn together or pushed apart, they raise or lower the platform. The number of scissor sets determines the table's maximum height and stability.
· Power Source: This is the engine that drives the movement. The most common power source is a hydraulic system, but pneumatic (air-powered) and electric (mechanical) systems are also used.
· Cylinders: In hydraulic and pneumatic systems, cylinders convert fluid or air pressure into the force needed to move the scissor legs.
· Controls: The control unit allows the operator to raise, lower, and stop the platform. This can be a simple hand-held pendant, a foot pedal, or an integrated control panel.
The majority of industrial lift tables are powered by hydraulics. The principle behind them is simple yet incredibly powerful, relying on Pascal's law, which states that pressure applied to an enclosed fluid is transmitted equally throughout the fluid.
Here’s a step-by-step breakdown of the process:
1.Activation: The operator initiates the "lift" command using a push-button or foot pedal. This activates an electric motor connected to a hydraulic pump.
2.Fluid Movement: The pump draws hydraulic fluid (typically oil) from a reservoir and pushes it through a valve into the hydraulic cylinder(s).
3.Cylinder Extension: As the cylinder fills with pressurized fluid, it pushes a piston or ram outward. This ram is connected to the scissor legs.
4.Scissor Action: The force from the extending cylinder pushes the scissor legs together. As the angle between the scissor arms narrows, the platform rises vertically. Check valves ensure the fluid cannot flow back, locking the platform securely in place even if power is lost.
5.Lowering the Platform: To lower the table, the operator activates the "down" control. This opens a down valve, which allows the hydraulic fluid to flow out of the cylinder and back into the reservoir. The weight of the platform and its load provides the force needed to gently push the fluid out, causing the scissor legs to separate and the platform to descend at a controlled rate.
The beauty of a hydraulic system is its ability to multiply force. A small amount of pressure from the pump can generate enough force to lift thousands of pounds, making it an ideal choice for heavy-duty applications.
While hydraulics dominate the market, other power systems are used for specific applications.
Pneumatic lift tables operate on a similar principle to hydraulic ones, but they use compressed air instead of liquid. An industrial airbag (or bellows) is placed between the platform and the base.
· Lifting: To raise the platform, a valve opens to allow compressed air from a shop's airline to inflate the airbag. As the bag expands, it pushes the platform upward.
· Lowering: To lower the table, another valve releases the air from the airbag, causing it to deflate and the platform to descend.
Pneumatic lift tables are a great choice for environments where hydraulic fluid contamination is a concern, such as in food processing or cleanroom applications. They offer clean, oil-free operation but generally have lower lifting capacities than their hydraulic counterparts.
Electric lift tables use mechanical means, rather than fluid or air, to create lift. A common design involves a motor-driven leadscrew or a belt drive.
· Lifting: An electric motor turns a threaded rod (a leadscrew). As the screw rotates, it moves a nut along its length. This nut is connected to the scissor mechanism, causing the legs to draw together and raise the platform.
· Lowering: Reversing the motor's direction causes the leadscrew to turn the other way, moving the nut in the opposite direction and lowering the platform.
Electric lift tables offer precise positioning and are highly repeatable, making them suitable for automated assembly lines. They are also clean and quiet, but they can be more complex and expensive than hydraulic systems.
A Lift Table Truck adds another layer of functionality: mobility. These units are essentially mobile scissor lifts on wheels. They are typically powered by a manual hydraulic foot pump or a battery-powered electric-hydraulic system.
The manual version works much like a car jack. The operator pumps a foot pedal, which forces hydraulic fluid into the cylinder in small increments, gradually raising the platform. A release pedal opens a valve to lower it. This design makes the Lift Table Truck a highly versatile tool for transporting heavy items, loading and unloading vehicles, and serving as an adjustable-height mobile workstation.
Understanding how lift tables work is the first step toward appreciating their role in creating safer and more efficient workplaces. By harnessing the power of hydraulics, pneumatics, or mechanics, these machines take the strain out of manual handling and allow workers to focus on tasks that require skill rather than brute force.
Whether you're looking to improve ergonomics at a single workstation or streamline an entire production line, there's a lift table designed to meet your needs. If you need help finding the right solution for your business, contact our team of experts today.
