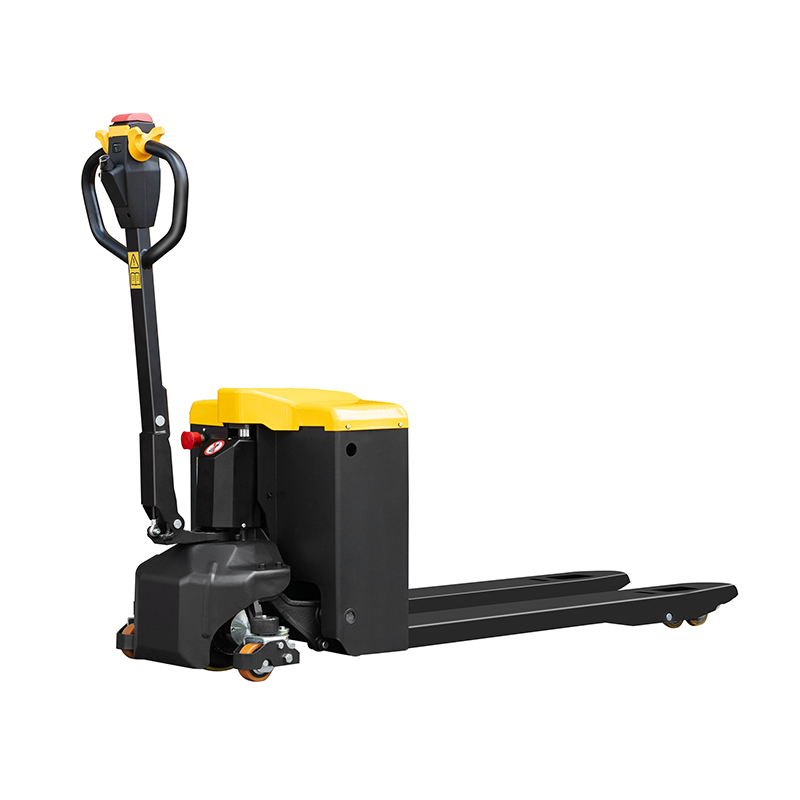

| Model | Unit | CBD-20 | CBD-20C | ||
| Rated load | T | 2.0 | |||
| Motive power | Electric | ||||
| Operation type | Walking style | ||||
| Load center | mm | 500 | |||
| Wheelbase | mm | 1284 | 1324 | ||
| Balance wheel | mm | Φ80×30 | |||
| Load wheel size | mm | Φ74×70 | Φ80×70 | ||
| Overall length | mm | 1660 | 1720 | ||
| Wheel material | PU | ||||
| Upper height | mm | 100 | |||
| Max.height of handle | mm | 1215 | |||
| Min.height of handle | mm | 1330 | |||
| Max.climb capability | Loading/unloading:7/16 | ||||
| Weight (excluding battery) | kg | 540 | 680 | 550 | 680 |
| 134 | 139 | 175 | 180 | ||
| Fork outer width | mm | 540 | 680 | 550 | 690 |
| Fork size | mm | 50×160×1150/50×170×1150 | |||
| Bridge load at full load,drive side/Load bearing side | kg | 483/1132 | |||
| Bridge load when unloaded drive side/Load bearing slde | kg | 100/30 | |||
| Turning radius | mm | 1480 | 1530 | ||
| Drive motor power | kw | 0.75 | 1.0 | ||
| Battery voltage | V/Ah | 24/48V 15/20/32/65/75/85Ah | |||
| Battery weight | kg | Lithium:3/3.5/4/4.5/5/6 Lead-acid:12/18/24/31/38/52 | |||
| Vehicle length | mm | 540 | |||
| Mini.height of fork | mm | 85±2 | |||
