· Load capacity 600kg
· Imported electrical vehicle exclusive walking control system
· Keep labor saving & high efficiency, manned pedal can be operated by one people.

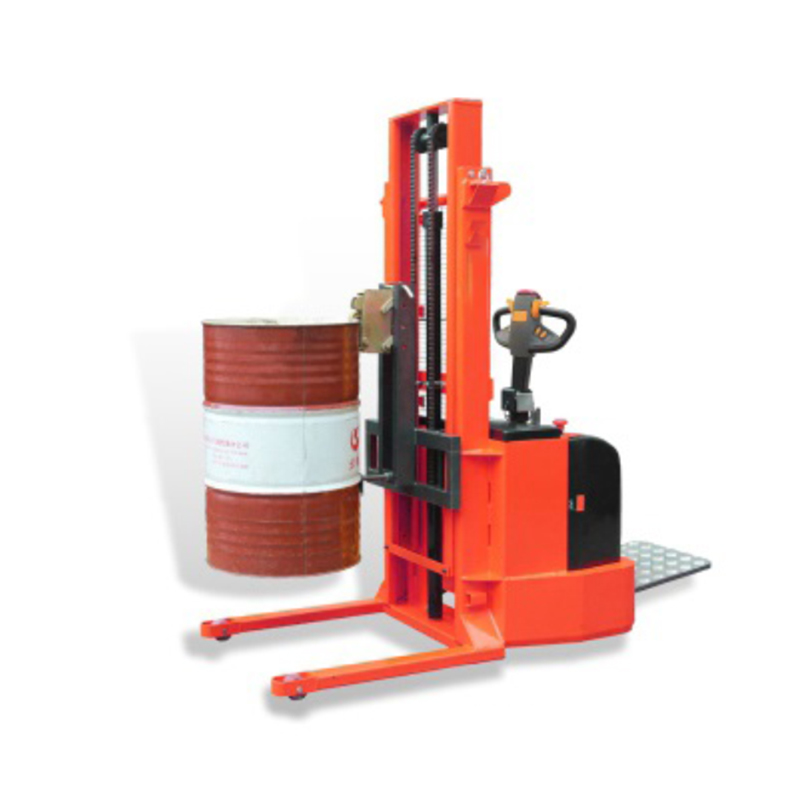

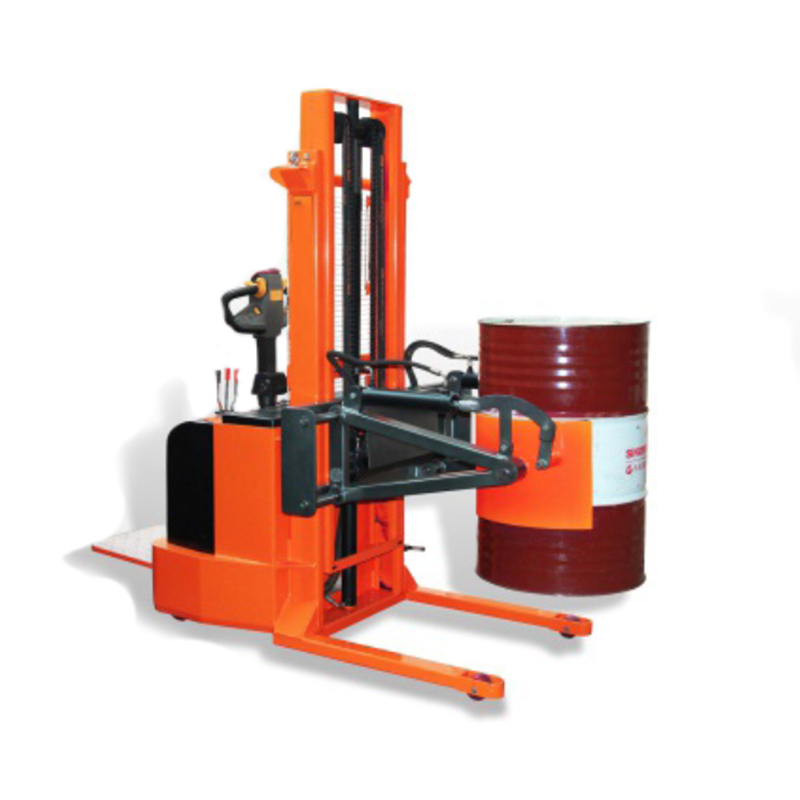

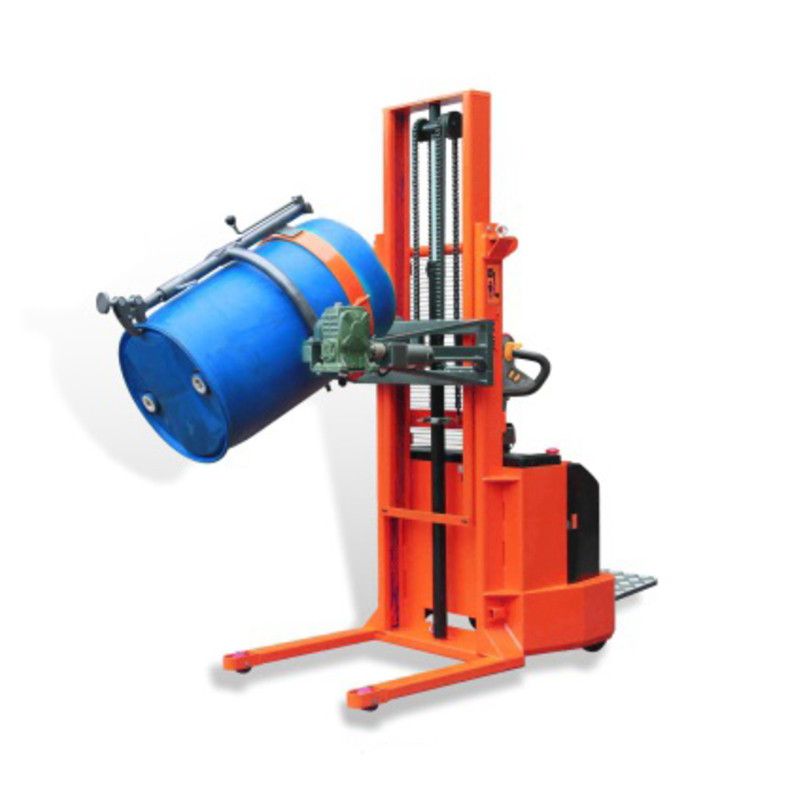

· Power drive, transport, lift and tilt 55 gallon steel drums
· Y1600: Electric clamping & electric rotating
· YL600A: manual clamping & electric rotating
· YL600B : electric lifting & eagle-grip gator
· Optional remote control lifting and rotating for YL600A
· Optional single and double gator grip drum grabber for YL600B
| Model | Unit | YL600 | YL600A | YL600B |
| Drive type | Electric | |||
| Operating type | Standing steer type | |||
| Load capacity | kg | 600 | ||
| Lifting height | mm | 2400 | ||
| Total height | mm | 1870 | ||
| Total length | mm | 2290 | 2360 | 2050 |
| Total width | mm | 1180 | 1030 | 980 |
| Turning radius | mm | 1840 | 1910 | 1710 |
| Max.grade abilty (fully-loaded/no-load) | % | 3/5 | ||
| Driving wheel size | mm | Φ250×80 | ||
| Tire | Polyurethane | |||
| Brake type | Electromagnetic braking | |||
| Drive motor power | kw | 1.2 | ||
| Lifting motor power | kw | 2.2 | ||
| Noise level | dB(A) | <70 | ||
| Charger | V/A | 24/30 | ||
| Battery voltage/capacity | V/Ah | 24/240 | ||
| Net weight | kg | 890 | 692 | 635 |
| Drum rotating range | 135 | 360 | ||
