Standard configuration:
· 48V/20Ah lithium battery power, optional 48V30Ah
· AC1kW upper horizontal drive motor
· Gyroscope integrated handle to reduce failure rate
· Emergency reverse button
· ABS anti-slip
· Fork length/width can be customized
· Press the turtle speed button to achieve uprightwalking in a small space
· Solid rubber drive wheel
· Adapt to rugged terrain

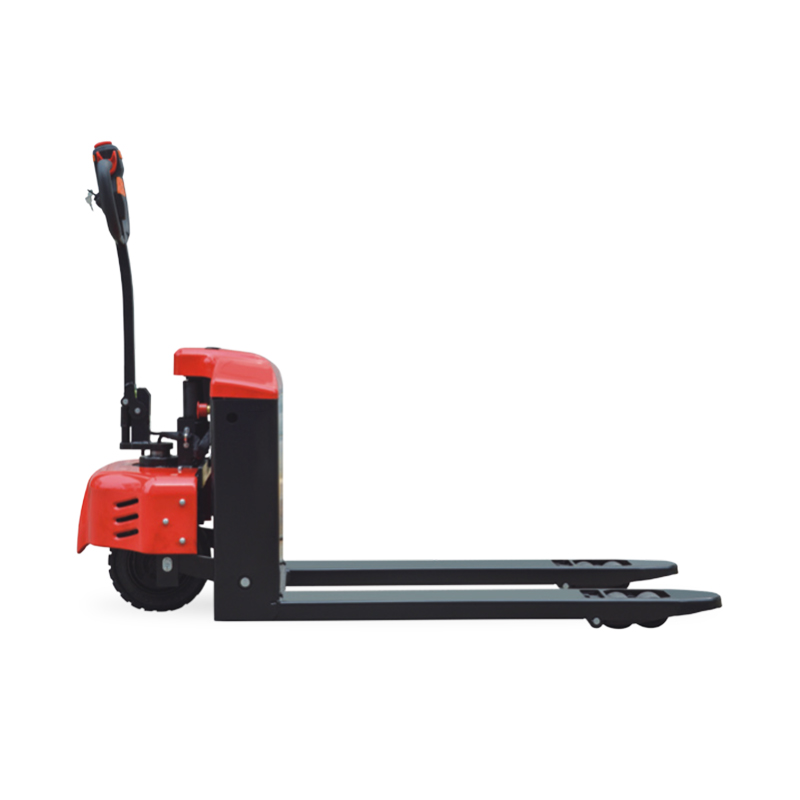

Model | Unit | CBD-Y | |
Characteristlc | Operation mode | Walking | |
Rated load capacity | Q(kg) | 3000 | |
Lift height | h3(mm) | 205 | |
Weight | kg | 260 | |
Load center distance | c(mm) | 600 | |
Front overhang | x(mm) | 981 | |
Wheelbase | y(mm) | 1334 | |
Controller | KTZ48C | ||
Wheels | Tire type | PU | |
Drive wheel size | Φx w(mm) | Φ300×95 Rubber | |
Carrying wheel size | Φx w(mm) | Φ84×90 Nylon | |
Balance wheel size | Φx w(mm) | ||
Number of driving wheels,balance wheels/carrying wheels (x=drlving wheels) | 1x,0/4 | ||
Dimensions | Minimum height of fork | h 13(mm) | 85 |
Vehicle length | L1(mm) | 1786 | |
Body length | L2(mm) | 567.5 | |
Vehicle width | b1/b2(mm) | 699 | |
Fork size | s/e/I(mm) | 55/165/1220 | |
Fork outer width | b5(mm) | 550/685 | |
Ground clearance at wheelbase center | m2(mm) | 30 | |
Aisle width:1000x1200 pallets(1200 placed along the forks) | Ast(mm) | 2294 | |
Alsle width:800x1200 pallets(1200 placed along the forks) | Ast(mm) | 2204 | |
Turning radius | Wa(mm) | 1548 | |
Performance | Traveling speed,full/unloaded | km/h | 4/4.5 |
Lift speed,full load/no load | mm/s | 20/30 | |
Descending speed,full/unloaded | mm/s | 40/30 | |
Maximum gradeabillty,full/unladen | % | 5/16 | |
Brake type | Electromagnetic brake | ||
Drlve& Battery | Drive motor power | kw | 1 |
Lifying motor power | kw | 0.8 | |
Battery voltage/capacity | V/Ah | 48/20(Option48/30) | |
Battery weight | kg | 11 | |
Others | Noise level | dB(A) | 69 |
Steering type | Mechanical steering |
