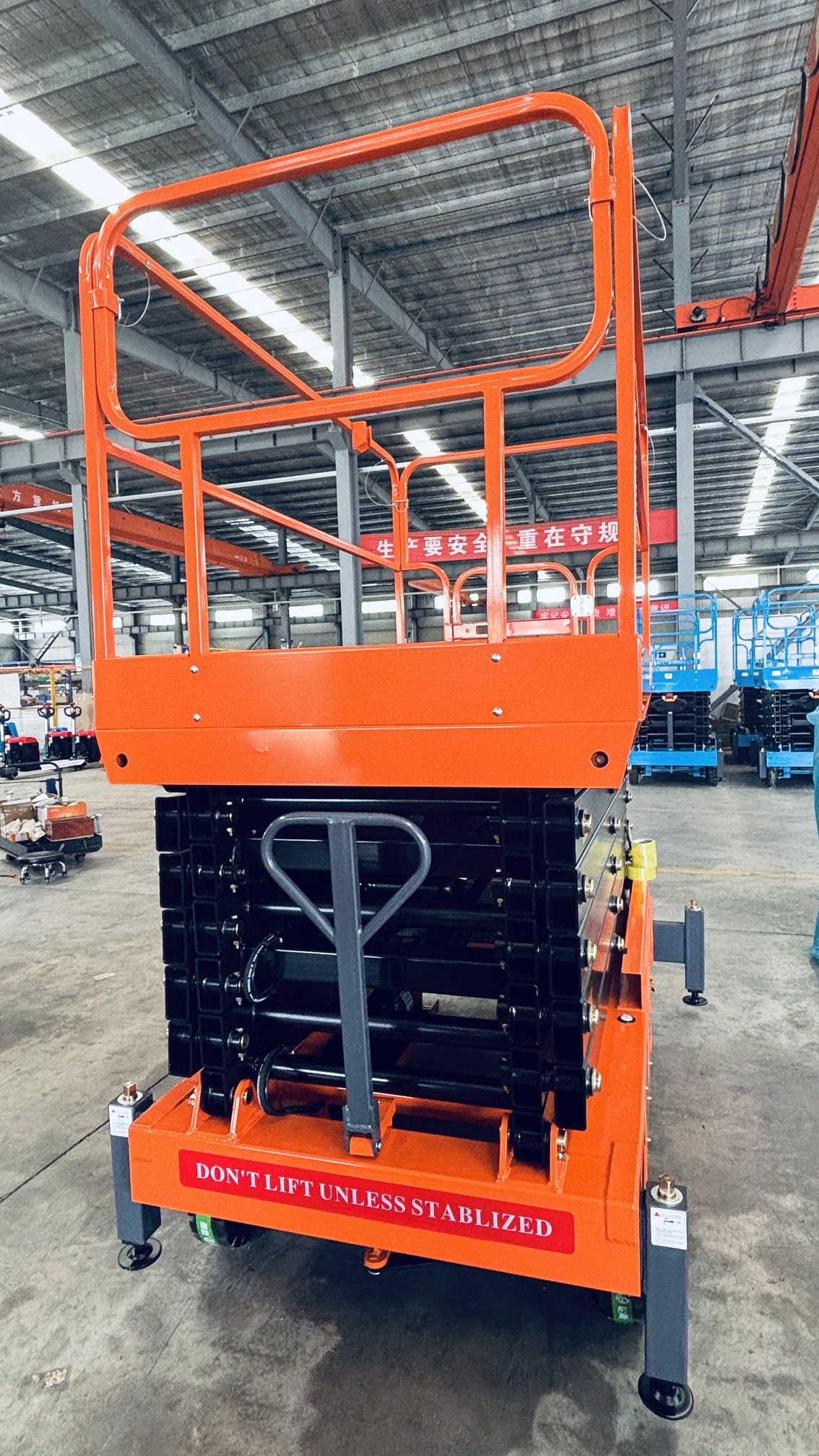

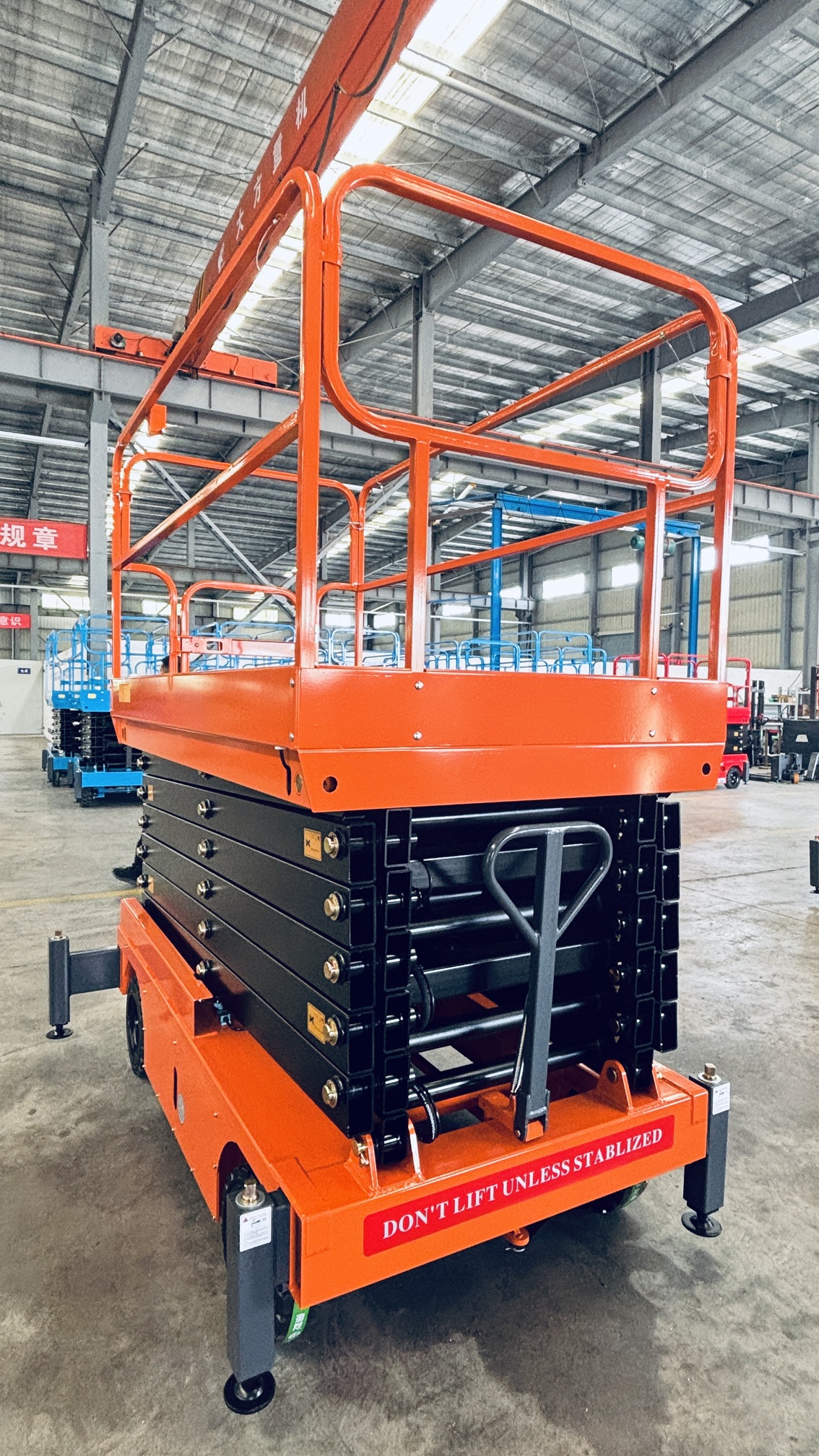

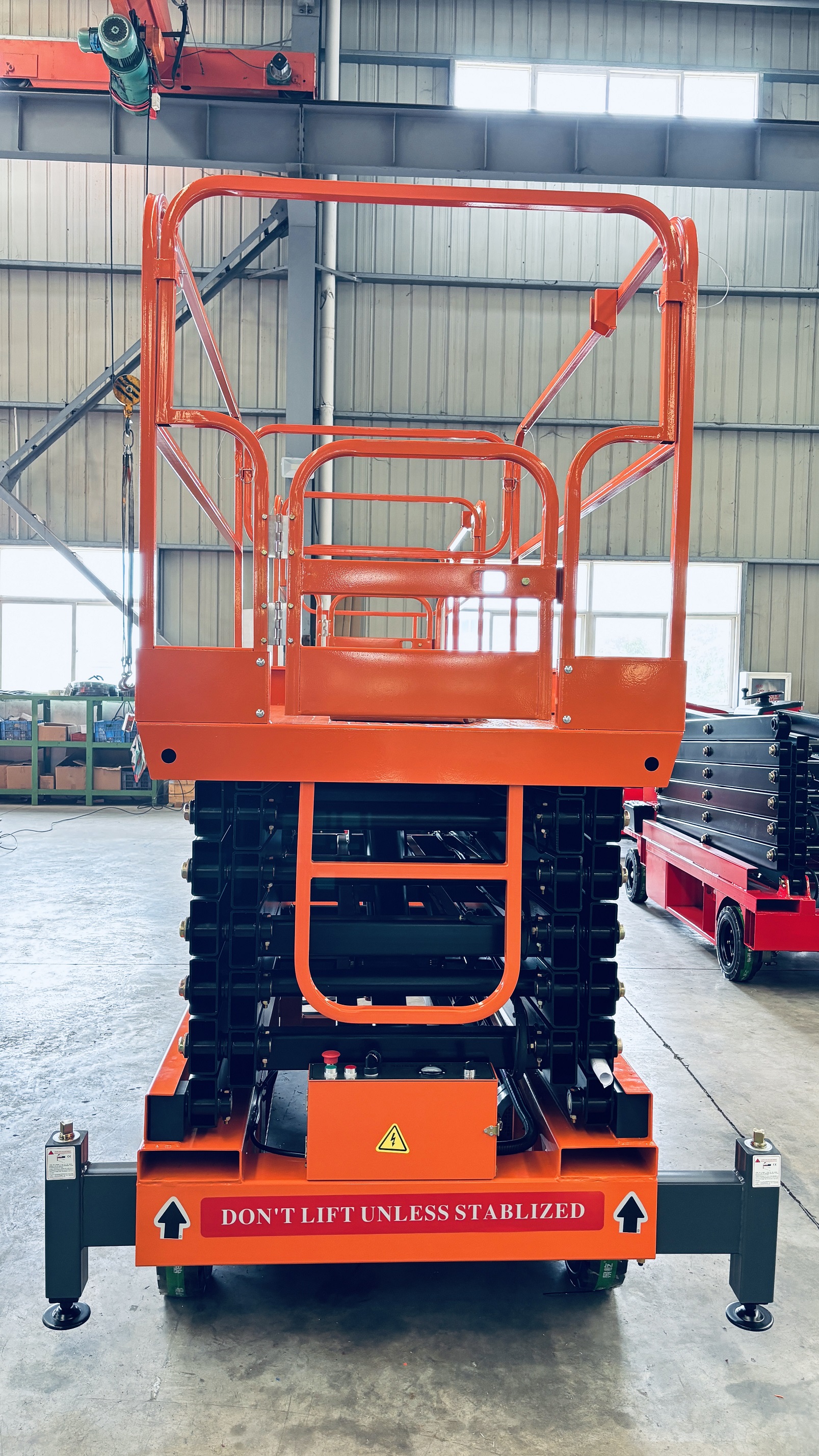

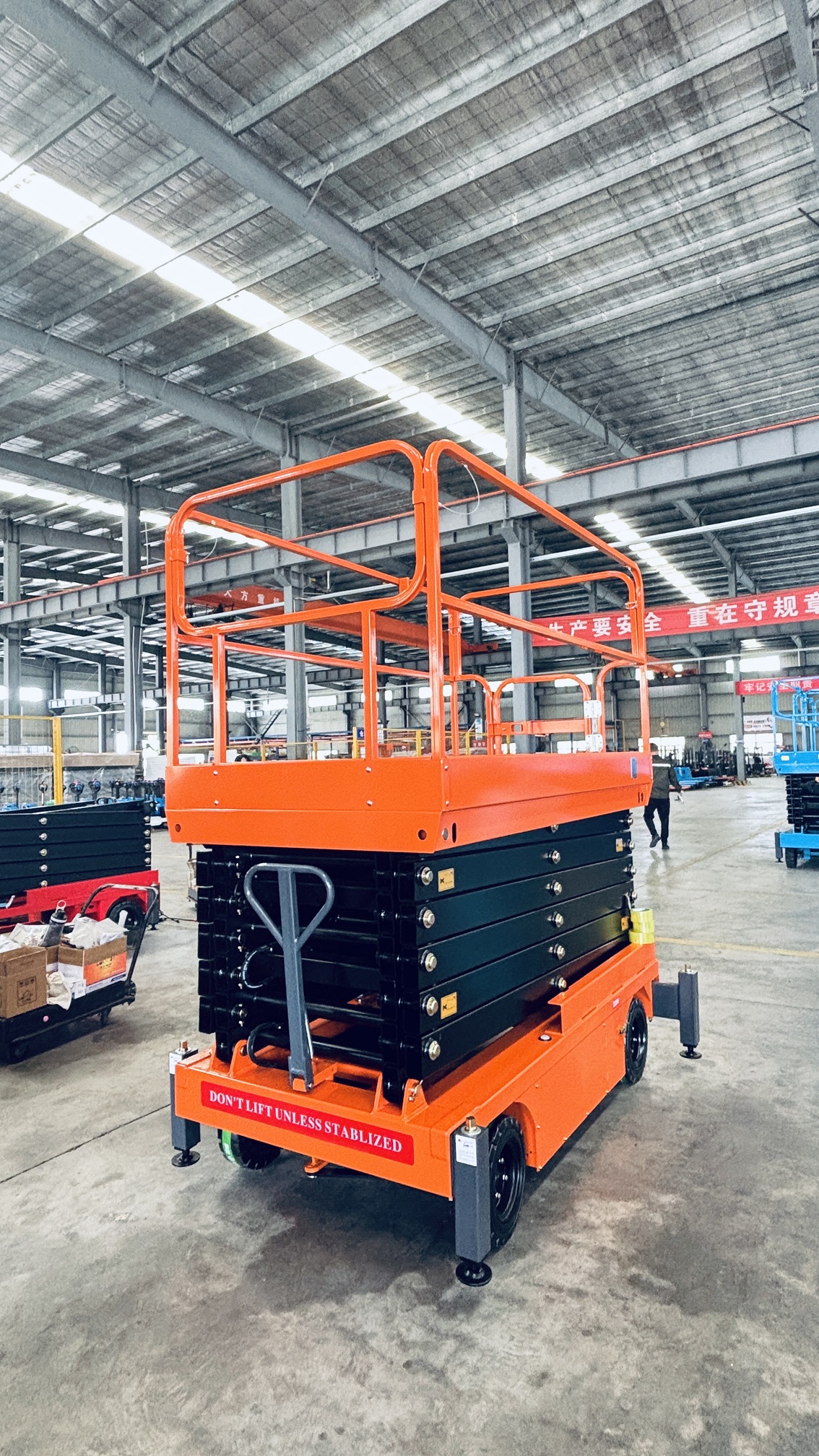

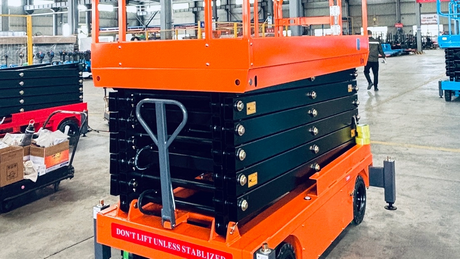

The SJY Walkable Scissor Lift is a mobile, electrically-powered aerial work platform (AWP) designed for stable, heavy-duty lifting at medium to high working heights. It is manually pushed into position and electrically powered for lifting operations — making it one of the most cost-effective scissor lift forklifts available for facilities requiring reliable vertical access.
Available in rated loading capacities of 300 kg, 400 kg, and 500 kg, and with maximum platform heights ranging from 7,000 mm to 16,000 mm, the SJY series suits a broad range of industrial and commercial applications.
A walkable scissor lift is a type of aerial work platform that operators manually push (walk) into position before using electric power to raise and lower the working platform. Unlike fully self-propelled lifts, walkable scissor lifts do not drive under their own power, which makes them a more economical alternative while still delivering reliable vertical reach.
The SJY series from Maihui Machine is designed specifically for environments where stable, repeatable lifting at height is required — such as warehouses, maintenance facilities, manufacturing floors, and construction sites.
Electrically powered lifting with motor options of 220–380V / 2.2–4 kW depending on model
Maximum platform height up to 16,000 mm (16 meters), suitable for high-bay environments
Rated load capacities of 300 kg, 400 kg, and 500 kg across the model range
Mobile and manually repositionable — no self-propelled drive system required
Compact folded dimensions for easier transport and storage
Multiple platform sizes to accommodate different working footprints
Heavy-duty construction, with overall machine weights from 1,120 kg to 3,750 kg
Model | SJY0.5-7 | SJY0.5-9 | SJY0.5-11 | SJY0.5-14 | SJY0.5-12 | SJY0.3-13 | SJY0.4-16 |
|---|---|---|---|---|---|---|---|
Rated Capacity (kg) | 500 | 500 | 500 | 300 | 400 | 300 | 400 |
Max. Platform Height (mm) | 7,000 | 9,000 | 11,000 | 14,000 | 12,000 | 12,850 | 16,000 |
Min. Platform Height (mm) | 1,120 | 1,240 | 1,370 | 1,835 | 1,656 | 1,495 | 2,430 |
Working Platform (mm) | 2,150×1,140 | 2,500×1,260 | 2,150×1,140 | 2,750×1,600 | 2,750×1,600 | 2,750×1,600 | 2,750×1,600 |
Unfolding Size (mm) | 2,130×2,890 | 2,560×2,890 | 2,130×2,890 | 3,520×4,140 | 3,520×4,140 | 3,520×4,140 | 3,520×4,140 |
Lift Motor (V/kW) | 220–380 / 2.2 | 220–380 / 3 | 220–380 / 2.2 | 220–380 / 4 | 220–380 / 4 | 220–380 / 4 | 220–380 / 4 |
Overall Length (mm) | 2,250 | 2,558 | 2,200 | 3,020 | 3,020 | 3,020 | 3,020 |
Overall Width (mm) | 1,300 | 1,410 | 1,300 | 1,960 | 1,960 | 1,960 | 1,960 |
Overall Height (mm) | 2,120 | 2,240 | 2,370 | 2,987 | 2,650 | 2,495 | 3,530 |
Overall Weight (kg) | 1,120 | 1,320 | 1,680 | 2,680 | 2,040 | 1,880 | 3,750 |
The SJY series aerial work platform is well-suited for applications that require repeated vertical access in a fixed or semi-fixed location. Common use cases include:
Warehouse maintenance and stock access at elevated racking heights
Building and facility maintenance, including lighting, HVAC systems, and ceiling infrastructure
Manufacturing and assembly operations requiring elevated work positions
Construction and fit-out tasks where a cost-effective aerial platform is needed
Logistics facilities requiring periodic high-level access without full self-propelled equipment
The SJY walkable scissor lift is better suited for operations where the machine is repositioned infrequently and the priority is stable, reliable lifting within a defined work area. Self-propelled scissor lifts are better suited for dynamic worksites where the operator needs to drive the platform between positions while elevated, or across larger surface areas.
Facilities looking to minimize equipment costs while maintaining safe, heavy-duty vertical access will generally find the walkable scissor lift a practical and economical choice.
Q: What is the maximum height the SJY Walkable Scissor Lift can reach?
The tallest model in the SJY series — the SJY0.4-16 — reaches a maximum platform height of 16,000 mm (16 meters). Other models in the range cover platform heights from 7,000 mm to 14,000 mm, depending on the application.
Q: How is the SJY Walkable Scissor Lift powered?
The SJY series uses an electric lift motor operating at 220–380V, with motor power ranging from 2.2 kW to 4 kW depending on the model. The machine is manually pushed into position, then electrically operated to raise and lower the platform.
Q: What is the maximum load capacity of the SJY Walkable Scissor Lift?
The SJY series is available in rated load capacities of 300 kg, 400 kg, and 500 kg. The 500 kg capacity models are the SJY0.5-7, SJY0.5-9, SJY0.5-11, and SJY0.5-12.
Q: Is the SJY Walkable Scissor Lift suitable for outdoor use?
The product description does not specify outdoor ratings. Contact Maihui Machine directly at maihui@gdmaihui.com or via WhatsApp at +86 18922018018 to confirm suitability for your specific operating environment.
Q: Can I get a custom configuration for the SJY Walkable Scissor Lift?
Maihui Machine offers product inquiries for custom requirements. Submit an inquiry through the product page at gdmaihui.com or contact the sales team directly.
