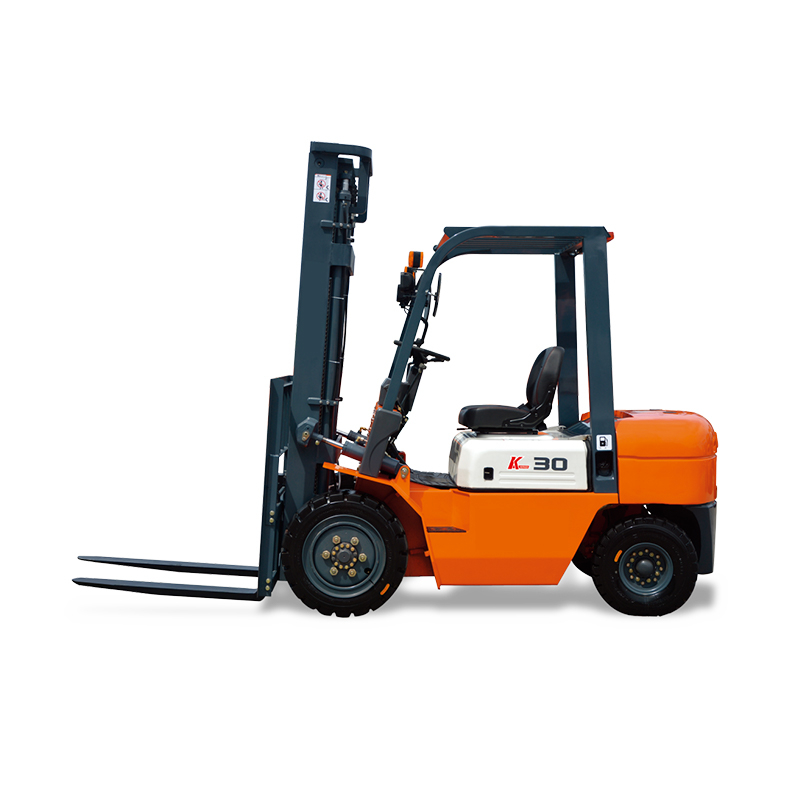

| Model | Unit | HK20 | HK25 | HK30 | HK35 | |
| Fuel type | Diesel | Diesel | Diesel | Diesel | ||
| Load capacity | kg | 2000 | 2500 | 3000 | 3500 | |
| Load center | mm | 500 | 500 | 500 | 500 | |
| Lift height | mm | 3000 | 3000 | 3000 | 3000 | |
| Full free lift height | mm | 1000 | 1000 | 1000 | 1000 | |
| Fork dilmension | mm | 1070×122×40 | 1070×122×40 | 1070×122×40 | 1070×122×40 | |
| Mast tilting angle | Deg | 6/12 | 6/12 | 6/12 | 6/12 | |
| Min.turning radius | mm | 2190 | 2190 | 2190 | 2190 | |
| Ground clearance | mm | 120 | 120 | 135 | 135 | |
| mm | 130 | 130 | 140 | 140 | ||
| Overhead guard | mm | 2160 | 2160 | 2165 | 2165 | |
| Front overhang | mm | 450 | 450 | 490 | 490 | |
| Max.travel speed | km/h | 19 | 19 | 20 | 20 | |
| Max.Iift speed | mm/s | 500 | 500 | 480 | 480 | |
| Max.traction power | kw | 17 | 18 | 20 | 22 | |
| Max.grade abilty | % | 20 | 20 | 20 | 20 | |
| Total length with fork | mm | 3600 | 3650 | 3770 | 3820 | |
| Total length without | mm | 2530 | 2580 | 2700 | 2750 | |
| Total width | mm | 1160 | 1160 | 1225 | 1225 | |
| Mast extended height | mm | 4220 | 4220 | 4265 | 4265 | |
| Mast lowered height | mm | 2060 | 2060 | 2060 | 2060 | |
| Tyres front | 7.00-12-PR | 7.00-12-PR | 28×9-15-12PR | 28×9-15-12PR | ||
| Tyres rear | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | ||
| Wheelbase | mm | 1600 | 1600 | 1700 | 1700 | |
| Tread | mm | 970/970 | 970/970 | 1000/970 | 1000/970 | |
| Service weight | kg | 3530 | 3880 | 4350 | 4600 | |
| Battery | V/Ah | 12/80 | 12/80 | 12/80 | 12/80 | |
| Motor | Model | Mitsubishi S4S | Mitsubishi S4S | Mitsubishi S4S | MitsubishiS4S | |
| Rated output | kw/r.p.m | 38/23000 | 40/2650 | 40/2650 | 40/2650 | |
| Rated torque | Nm/t.p.m | 176/1800 | 165/1800 | 165/1800 | 165/1800 | |
| Cylinders | 4 | 4 | 4 | 4 | ||
| Displacement | L | 2.7 | 2.7 | 2.7 | 2.7 | |
| Fuel tank capacity | L | 60 | 60 | 70 | 70 | |
| Transmission | Hydrauilic | |||||
