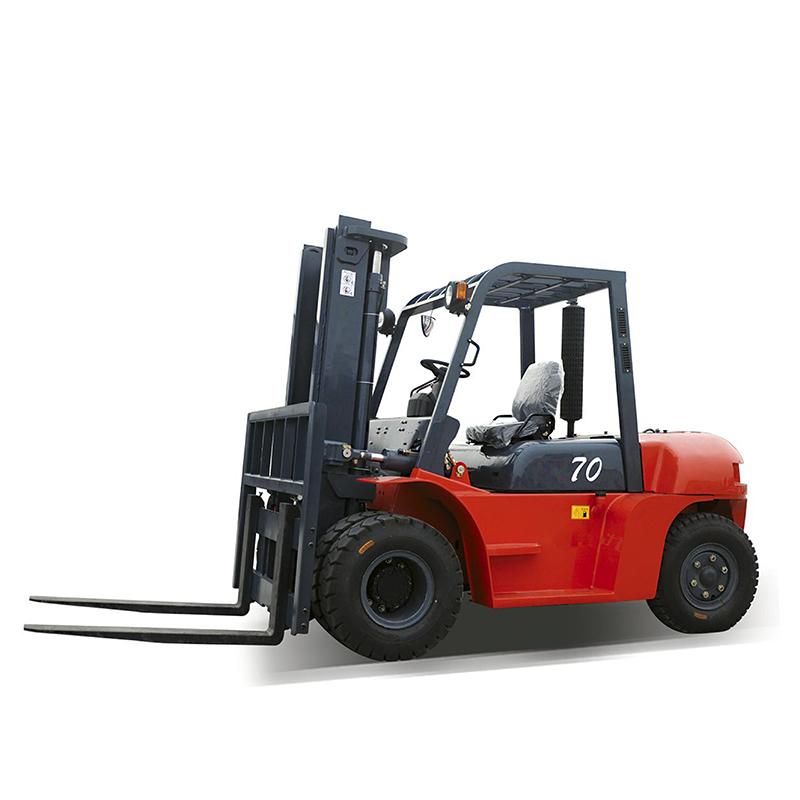

| Model | Unit | CPC60 | CPC70 | CPC80 | CPC100 |
| Fuel type | Diesel | Diesel | Diesel | Diesel | |
| Rated load | kg | 6000 | 7000 | 8000 | 10000 |
| Load center | mm | 600 | 600 | 600 | 600 |
| Lift height | mm | 3000 | 3000 | 3000 | 3000 |
| Free lifting height | mm | 200 | 200 | 155 | 220 |
| Fork size | mm | 1220×150×60 | 1220×150×65 | 1220×170×80 | 1220×175×80 |
| Mast tilt angle front and rear | Deg. | 6/12 | 6/12 | 6/12 | 6/12 |
| Min.turning radius | mm | 3320 | 3380 | 3730 | 4150 |
| Ground clearance | mm | 200 | 200 | 250 | 250 |
| Head guard height from ground | mm | 2460 | 2460 | 2560 | 2560 |
| Front overhang | mm | 615 | 590 | 710 | 710 |
| Max.travel speed full load | km/h | 26 | 29 | 26 | 26 |
| Max.Iifting speed full load | mm/s | 400 | 500 | 410 | 400 |
| Max.traction full load | KN | 51.4 | 53 | 52 | 52 |
| Max.climbing angle | % | 20 | 20 | 20 | 20 |
| Full length with forks | mm | 4770 | 4800 | 5345 | 5565 |
| Full length without forks | mm | 3550 | 3580 | 4125 | 4345 |
| Full width | mm | 1995 | 1995 | 2260 | 2260 |
| Overall mast lifting height | mm | 4380 | 4420 | 4420 | 4420 |
| Mast closed height | mm | 2500 | 2625 | 2700 | 2840 |
| Tire front | 8.25-15-14PR | 8.25-15-14PR | 9.00-20-14PR | 9.00-20-14PR | |
| Tire rear | 8.25-15-14PR | 8.25-15-14PR | 9.00-20-14PR | 9.00-20-14PR | |
| Wheelbase | mm | 2550 | 2550 | 2800 | 2800 |
| Track | mm | 1470/1700 | 1470/1700 | 1600/1700 | 1600/1700 |
| Total welght | kg | 8640 | 9350 | 11550 | 12500 |
| Battery | V/Ah | (12/80)x2 | (12/80)x2 | (12/100)x2 | (12/100)x2 |
| Engine model | XICHAI 4DF3 | XICHAI 4DF3 | XICHAI 4DF3 | XICHAI 4DF3 | |
| Starting rated power | kw/t.p.m | 85 | 85 | 85 | 85 |
| Gearbox | Hydraullc | Hydraulic | Hydraulic | Hydraulic | |
| Working pressure | Mpa | 20 | 20 | 20 | 20 |
| Model | Unit | CPC60 | CPC70 | CPC80 | CPC100 |
| Fuel type | Diesel | Diesel | Diesel | Diesel | |
| Rated load | kg | 6000 | 7000 | 8000 | 10000 |
| Load center | mm | 600 | 600 | 600 | 600 |
| Lift height | mm | 3000 | 3000 | 3000 | 3000 |
| Free lifting height | mm | 200 | 200 | 155 | 220 |
| Fork size | mm | 1220×150×60 | 1220×150×65 | 1220×170×80 | 1220×175×80 |
| Mast tilt angle front and rear | Deg. | 6/12 | 6/12 | 6/12 | 6/12 |
| Min.turning radius | mm | 3320 | 3380 | 3730 | 4150 |
| Ground clearance | mm | 200 | 200 | 250 | 250 |
| Head guard height from ground | mm | 2460 | 2460 | 2560 | 2560 |
| Front overhang | mm | 615 | 590 | 710 | 710 |
| Max.travel speed full load | km/h | 26 | 29 | 26 | 26 |
| Max.Iifting speed full load | mm/s | 400 | 500 | 410 | 400 |
| Max.traction full load | KN | 51.4 | 53 | 52 | 52 |
| Max.climbing angle | % | 20 | 20 | 20 | 20 |
| Full length with forks | mm | 4770 | 4800 | 5345 | 5565 |
| Full length without forks | mm | 3550 | 3580 | 4125 | 4345 |
| Full width | mm | 1995 | 1995 | 2260 | 2260 |
| Overall mast lifting height | mm | 4380 | 4420 | 4420 | 4420 |
| Mast closed height | mm | 2500 | 2625 | 2700 | 2840 |
| Tire front | 8.25-15-14PR | 8.25-15-14PR | 9.00-20-14PR | 9.00-20-14PR | |
| Tire rear | 8.25-15-14PR | 8.25-15-14PR | 9.00-20-14PR | 9.00-20-14PR | |
| Wheelbase | mm | 2550 | 2550 | 2800 | 2800 |
| Track | mm | 1470/1700 | 1470/1700 | 1600/1700 | 1600/1700 |
| Total welght | kg | 8640 | 9350 | 11550 | 12500 |
| Battery | V/Ah | (12/80)x2 | (12/80)x2 | (12/100)x2 | (12/100)x2 |
| Engine model | XICHAI 4DF3 | XICHAI 4DF3 | XICHAI 4DF3 | XICHAI 4DF3 | |
| Starting rated power | kw/t.p.m | 85 | 85 | 85 | 85 |
| Gearbox | Hydraullc | Hydraulic | Hydraulic | Hydraulic | |
| Working pressure | Mpa | 20 | 20 | 20 | 20 |
