1.Specifictions
| Model | Rated capacity(kg) | Max.lifting height(mm) | Platform size(mm) (can be customized) |
| QWB10/1050 | 1000 | 1050 | 2000×1800 |
| QWB10/1300 | 1000 | 1300 | 2000×1800 |
| QWB15/1300 | 1500 | 1300 | 2400×1800 |
| QWB15/1500 | 1500 | 1500 | 2400×1800 |
| QWB20/1300 | 2000 | 1300 | 2400×1800 |
| QWB20/1500 | 2000 | 1500 | 2400×1800 |
| System pressure(MPa) | 16 | ||
| Operating voltage(V) | 12/24(DC) | ||
| Lifting speed(mm/s) | 80 | ||
Detail shot
Hydraulic Power Unit
Core Actuator Assembly

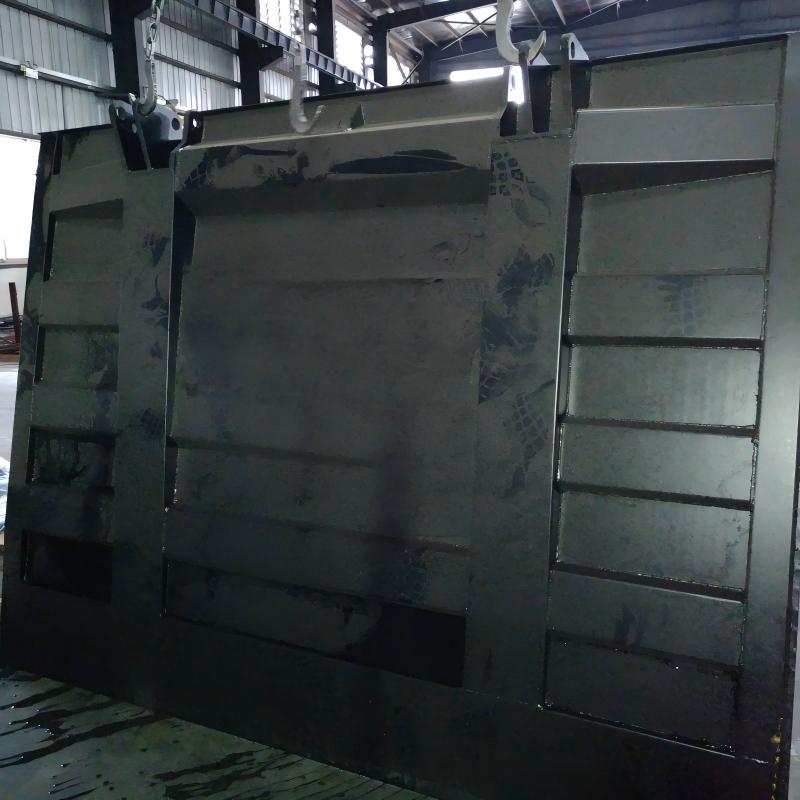

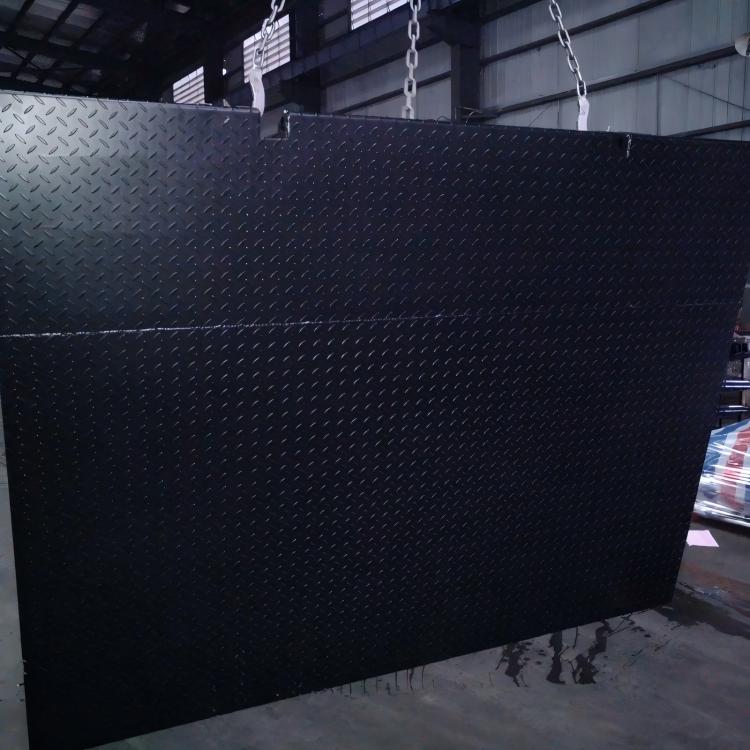

Checker Plate / Diamond Plate Steel Platform

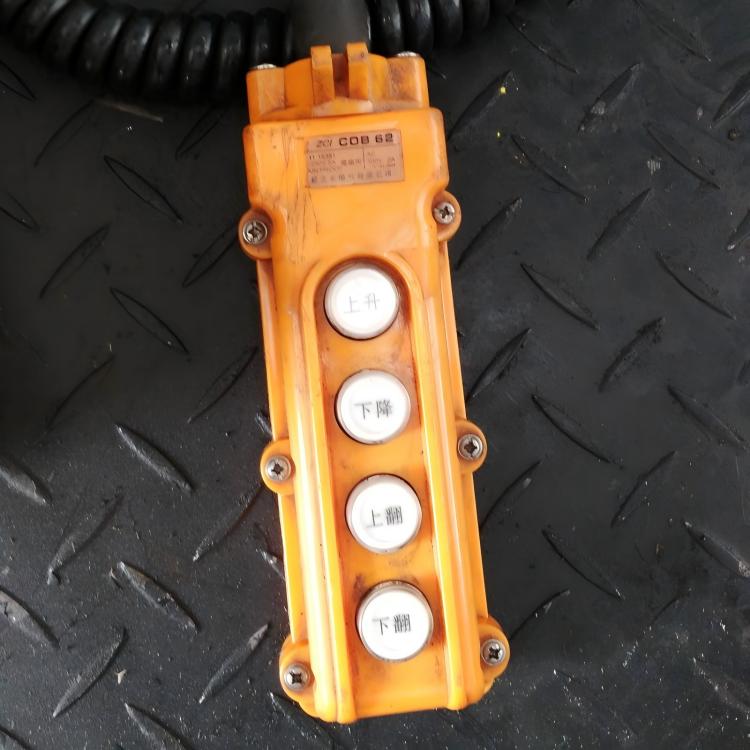

Simple and convenient operation: four actions of ascending, descending, upturning and downturning
Product Drawing
Working Sketch Map

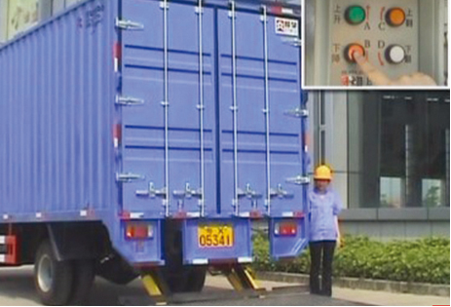

1. Turn down: Press and hold the button until it is level with the panel compartment .
2.the drop operation: long press the down button until the panel reaches the ground.

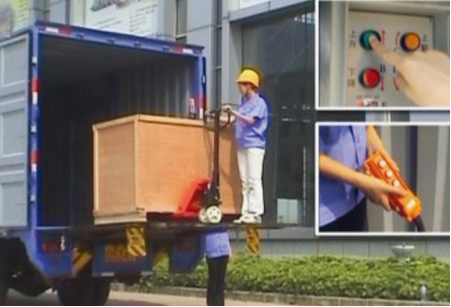

3.the rising operation: long press the rise button until the panel is level with the car.

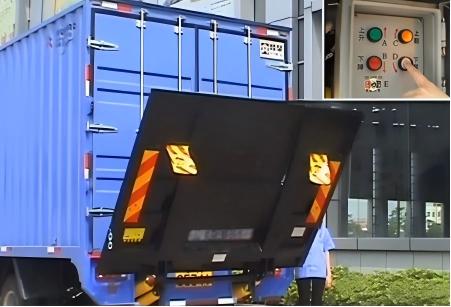

4.the upturn operation: long press the up button until the panel and the anti-collision pad.
Packing & Shipping
FQA
1.What are the advantages of a steel tail lift?
The main advantages of a steel tail lift are high structural strength, durability, and good impact resistance. Steel tail lifts are commonly used for heavy-duty applications where trucks frequently load and unload pallets, machinery, industrial equipment, and other heavy cargo. Compared with aluminum tail lifts, steel models are generally chosen when load strength and durability are prioritized over minimizing equipment weight. The appropriate material should be selected according to the vehicle, cargo weight, operating frequency, and working environment.
2.How do I choose the right steel tail lift for my truck?
To choose the right steel tail lift for a truck, first determine the maximum load, truck bed height, required platform dimensions, truck type, cargo type, and available installation space. The tail lift's rated capacity must be equal to or greater than the maximum load being lifted. Platform dimensions should also provide sufficient space for the cargo and loading equipment, such as pallet trucks or carts. For a customized steel tail lift, MAIHUI recommends providing the truck model, maximum cargo weight, truck bed height, platform size, cargo type, and installation drawings or photos.
A steel tail lift can typically handle 500 kg to 3,000 kg or more, depending on its design, rated capacity, platform size, and truck application. Common configurations include 1,000 kg, 1,500 kg, 2,000 kg, and 2,500 kg lifting capacities. The correct capacity should be selected based on the maximum cargo weight, cargo dimensions, truck type, and loading conditions. MAIHUI provides steel tail lifts with different capacities and customized configurations for commercial trucks and heavy-duty applications.
