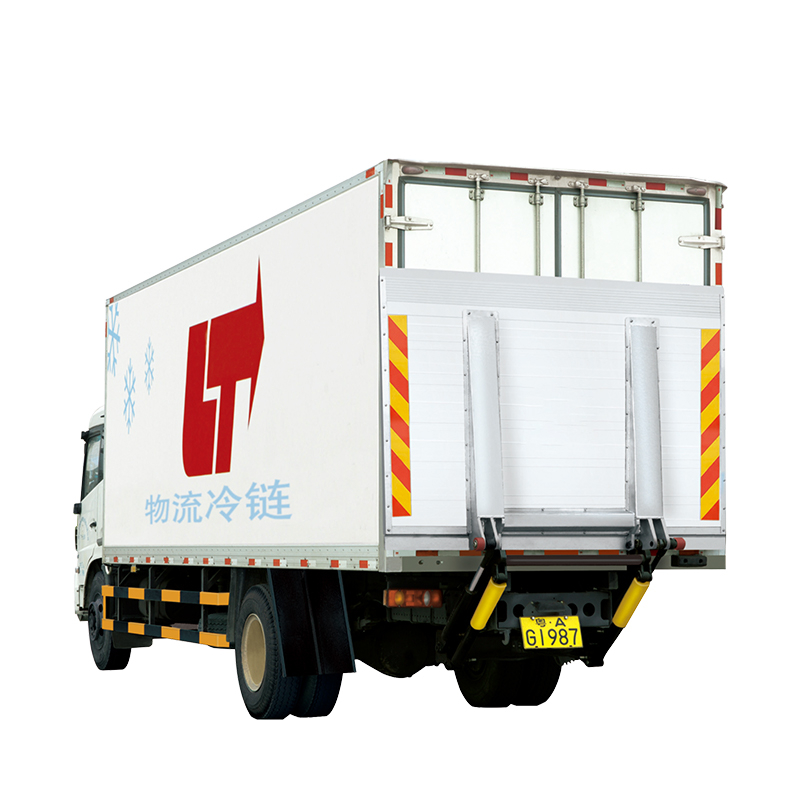

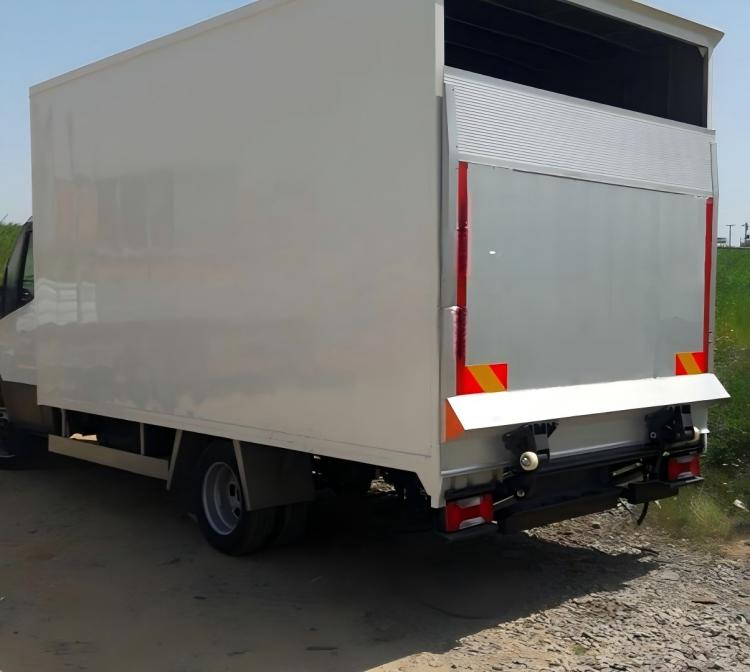

Vehicle Tail Lift(Aluminum Model)

Model:
QWA

Rated Loading Capacity:	1000kg 1500kg 2000kg
Lifting Height:	1050mm 1300mm 1500mm
Platform Size:	20001800 mm 2400 1800 mm
Availability:

Quantity:



Inquire Add to Basket

Product Description

Overview

· Various tailgates can be customized according to the frame of the model

· Suitable for all kinds of sanitation vehicles, battery cars, small frucks, etc.

· The tallgates panel is equlpped with a three-button switch, and the door opening and closing action is operated with two hands, which is much safer

· Suitable for 12V, 24V car battery

Specifications

Model	Rated capacity(kg)	Max.lifting height(mm)	Platform size(mm) (can be customized)
QWA10/1050	1000	1050	2000×1800
QWA10/1300	1000	1300	2000×1800
QWA15/1300	1500	1300	2400×1800
QWA15/1500	1500	1500	2400×1800
QWA20/1300	2000	1300	2400×1800
QWA20/1500	2000	1500	2400×1800
System pressure(MPa)	16
Operating voltage(V)	12/24(DC)
Lifting speed(mm/s)	80

Detail Shot

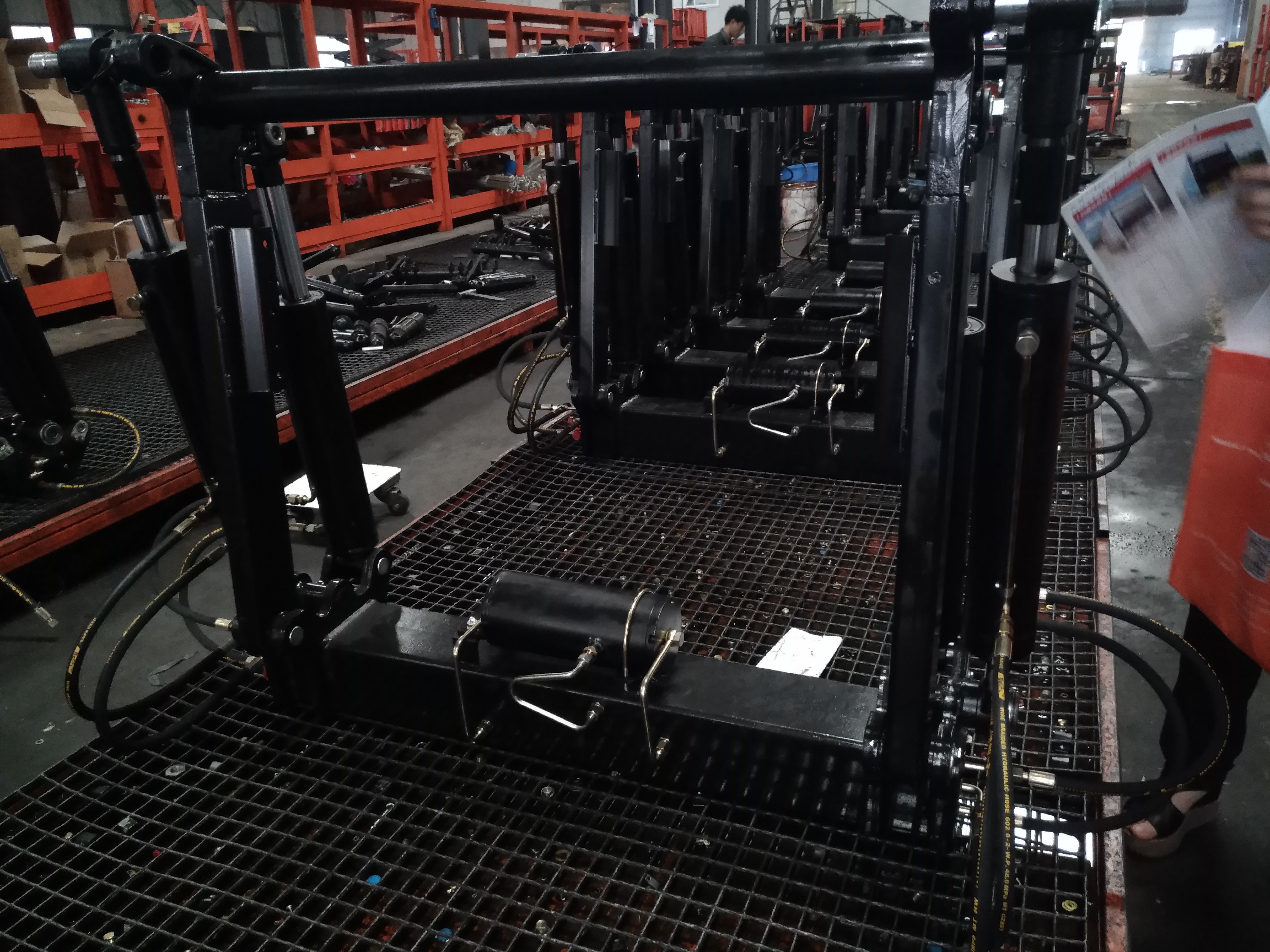

IMG_20170718_092424

Core Actuator Assembly

This precision-engineered assembly provides synchronized power, ensuring that every movement—from lifting to tilting—is smooth,stable, and safe.

Vehicle Tail Lift

Vehicle Tail Lift Aluminum

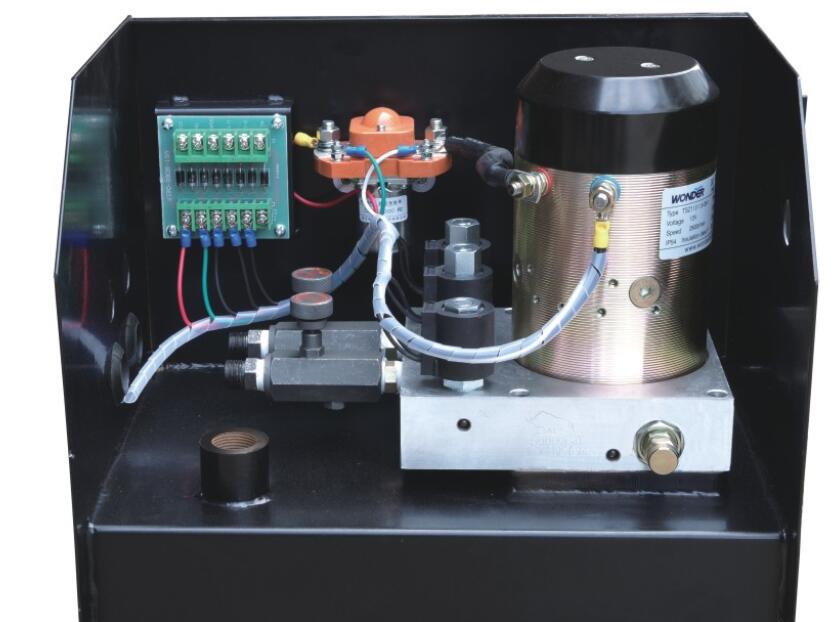

Hydraulic Power Unit

The Hydraulic Power Unit is the core driving force of the tail lift system. It converts electrical energy from the vehicle's
battery into powerful hydraulic pressure, enabling smooth and controlled lifting, tilting, and lowering operations. Our HPU is
integrated into a weather-protected steel box for maximum durability.

Vehicle Tail Lift

Tail Lift

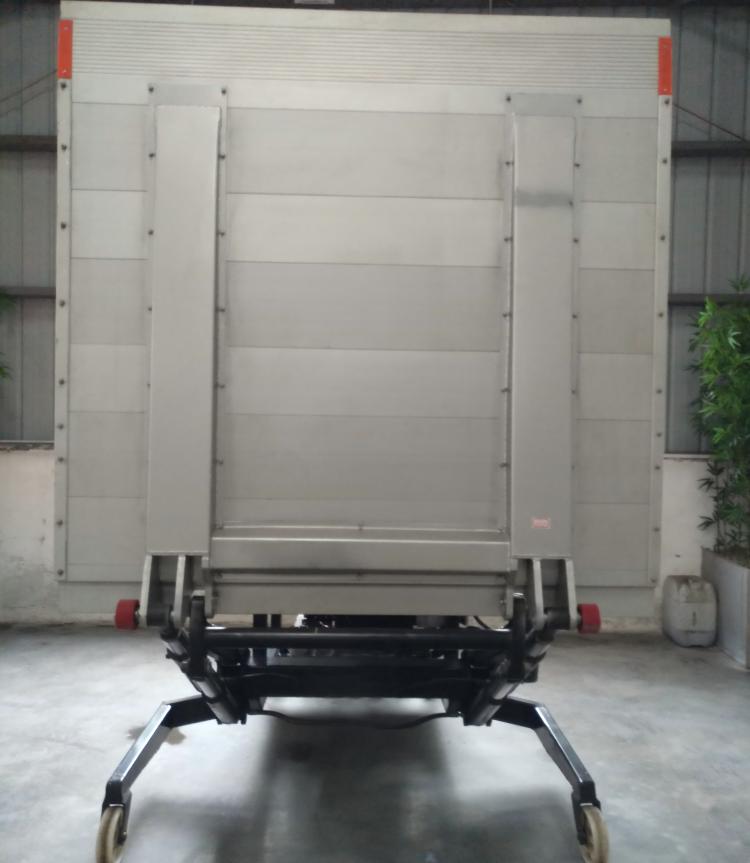

Anti-Slip Ribbed Surface&Corrosion-Proof Construction

Our tail lift features a lightweight, heavy-duty aluminum platform engineered for maximum performance and durability. Unlike
traditional steel platforms, this aluminum construction offers a superior strength-to-weight ratio, allowing for a higher vehicle

payload and significantly better fuel efficiency.

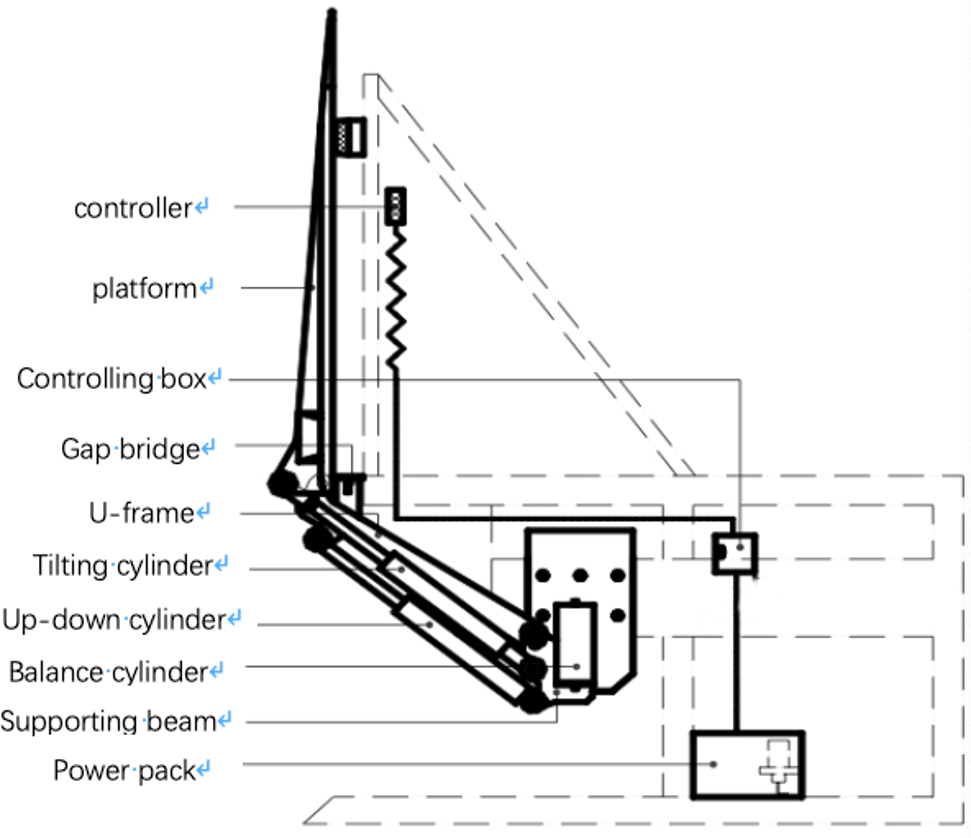

Product Drawing
