Views: 0 Author: Site Editor Publish Time: 2026-07-16 Origin: Site

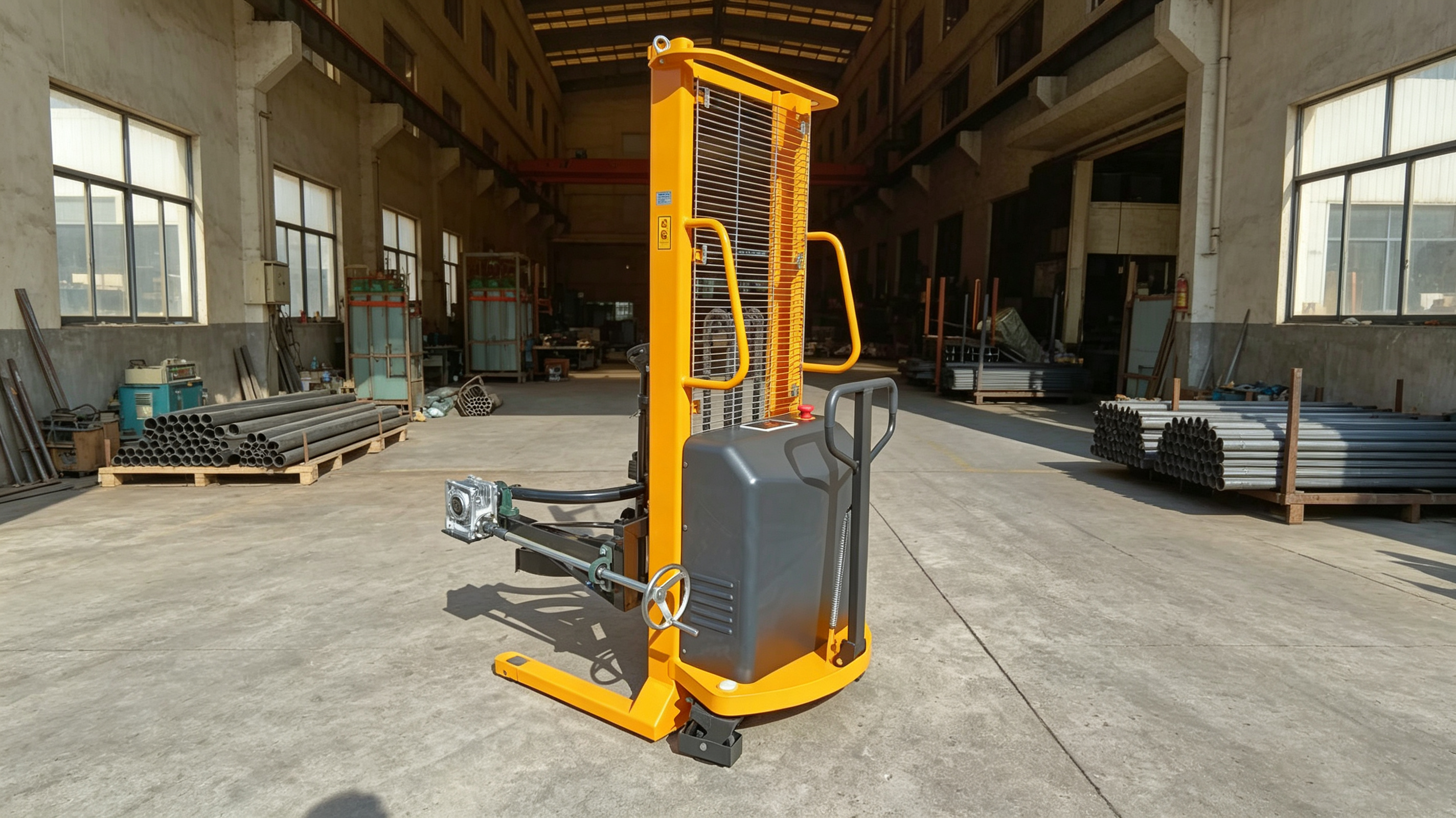

The CDT Semi-Electric Drum Lift is a powered drum stacker designed to lift, transport, rotate, and dispense from standard 210-liter (55-gallon) drums, with a rated load capacity of 350kg and lifting heights of up to 2500mm. As a semi-electric drum truck, the CDT combines electric-powered lifting with manual pushing and steering—delivering an effective balance between operational efficiency and cost-effectiveness.
Three models are available (COT0.35/1.4, CDT0.35/1.6, and CDT0.35/2.5) to suit different height and application requirements across industries including chemical manufacturing, food production, and warehouse logistics.
The CDT Semi-Electric Drum Lift—also referred to as a semi-electric drum handler, powered drum stacker, or drum truck—is a specialized material handling device built for facilities that need to elevate and dispense from heavy drums without the overhead of a full electric forklift. Electric power drives the lift mechanism, while the operator manually steers and positions the unit. This design reduces operator fatigue during repeated lifts while keeping purchase and maintenance costs lower than fully electric alternatives.
Model |
COT0.35/1.4 |
CDT0.35/1.6 |
CDT0.35/2.5 |
|---|---|---|---|
Load Capacity (kg) |
350 |
350 |
350 |
Max Lifting Height (mm) |
1400 |
1600 |
2500 |
Overall Dimensions (mm) |
1210×970×2050 |
1190×890×2000 |
1190×890×2000 |
Overall Height (mm) |
2020 |
2120 |
1950 |
Self Weight (kg) |
160 |
320 |
365 |
Net Weight (kg) |
155 |
310 |
360 |
CDT0.35/1.6 is best suited for facilities requiring standard platform-height dispensing (up to 1600mm) with a compact footprint.
CDT0.35/2.5 works best when drums must be elevated to tall hopper or mezzanine heights (up to 2500mm), such as in multi-level blending or filling operations.
The CDT Semi-Electric Drum Lift is designed for any environment where drums must be raised to height and dispensed from an elevated position, but where a full electric forklift is unavailable, impractical, or cost-prohibitive.
Operators use the CDT to lift drums of raw chemical powders, solvents, or liquid ingredients to platform height for feeding into mixing reactors or batch tanks. The electric lift reduces spill risk compared to manual drum handling, and the tilting function enables complete drum emptying.
The CDT handles 210L drums containing edible oils, syrups, fruit concentrates, or food-grade additives at filling lines and blending stations. Stainless steel construction options (available on request) and smooth tilting support hygienic, drip-free pouring.
The 350kg rated capacity easily handles full paint or ink drums being lifted to hopper height for discharge into mixers, mills, or filling machines. A 360° rotation capability allows complete emptying of high-viscosity materials.
In blending plants and warehouses, the CDT Semi-Electric Drum Lift enables single-operator drum stacking at heights up to 1500mm, maximizing vertical storage utilization without requiring a forklift operator.
The tilting mechanism allows controlled, low-splash pouring of used oils, waste chemicals, or industrial solvents into collection tanks—reducing environmental contamination risk during drum emptying.
Precise angle control during dispensing enables metered pouring of liquid raw materials (shampoo bases, lotions, glycerin) into small-batch production kettles, reducing material waste and improving batch-to-batch consistency.
The CDT drum truck efficiently relocates drums from receiving docks to storage racks or prepares drums for outbound shipment—all with one operator and no forklift required.
Single-operator efficiency: Electric lifting eliminates the manual effort of raising heavy drums, reducing injury risk and operator fatigue.
Cost-effective alternative to full electric units: Semi-electric design keeps the purchase price and maintenance requirements lower than fully powered drum handlers.
Versatile model range: Three lifting height options (1400mm, 1600mm, 2500mm) allow the right unit to be selected for each application.
360° drum rotation: Supports complete emptying of viscous or semi-solid materials.
Broad industry compatibility: Suitable for chemical, food, paint, lubricant, waste, cosmetics, and warehouse environments.
Q: What is the difference between the CDT Semi-Electric Drum Lift and a fully electric drum handler?
A: The CDT Semi-Electric Drum Lift uses electric power exclusively for the lift mechanism, while the operator manually steers and pushes the unit. A fully electric drum handler, such as the YL600/600A/600B Full Electric Drum Handling Equipment, powers both lifting and drive functions. The semi-electric model is better suited for facilities with lower movement distances or tighter budgets, while the full electric model works best for high-throughput operations with frequent long-distance drum transport.
Q: What drum size does the CDT Semi-Electric Drum Lift support?
A: The CDT is specifically designed for standard 210-liter (55-gallon) drums with a maximum load capacity of 350kg per lift.
Q: Is the CDT available in stainless steel for food or pharmaceutical use?
A: Stainless steel construction options are available upon request. Contact Maihui's team at maihui@gdmaihui.com or via WhatsApp at +8618922018018 to discuss material and configuration requirements.
Q: How do I choose between the CDT0.35/1.6 and CDT0.35/2.5 models?
A: Select the CDT0.35/1.6 if your dispensing or storage height requirement is at or below 1600mm—this model is lighter (310kg) and more compact. Choose the CDT0.35/2.5 if drums must be raised to heights up to 2500mm, such as for tall hoppers or elevated mezzanine platforms.
COT Hand Drum Lift – Manual alternative for low-lift drum handling
YL600/600A/600B Full Electric Drum Handling Equipment – Fully powered solution for high-frequency drum operations
Drum Truck Range – Browse all drum handling equipment from Maihui
For pricing, availability, or to request a custom configuration, contact Maihui Machine at maihui@gdmaihui.com or WhatsApp +8618922018018.
