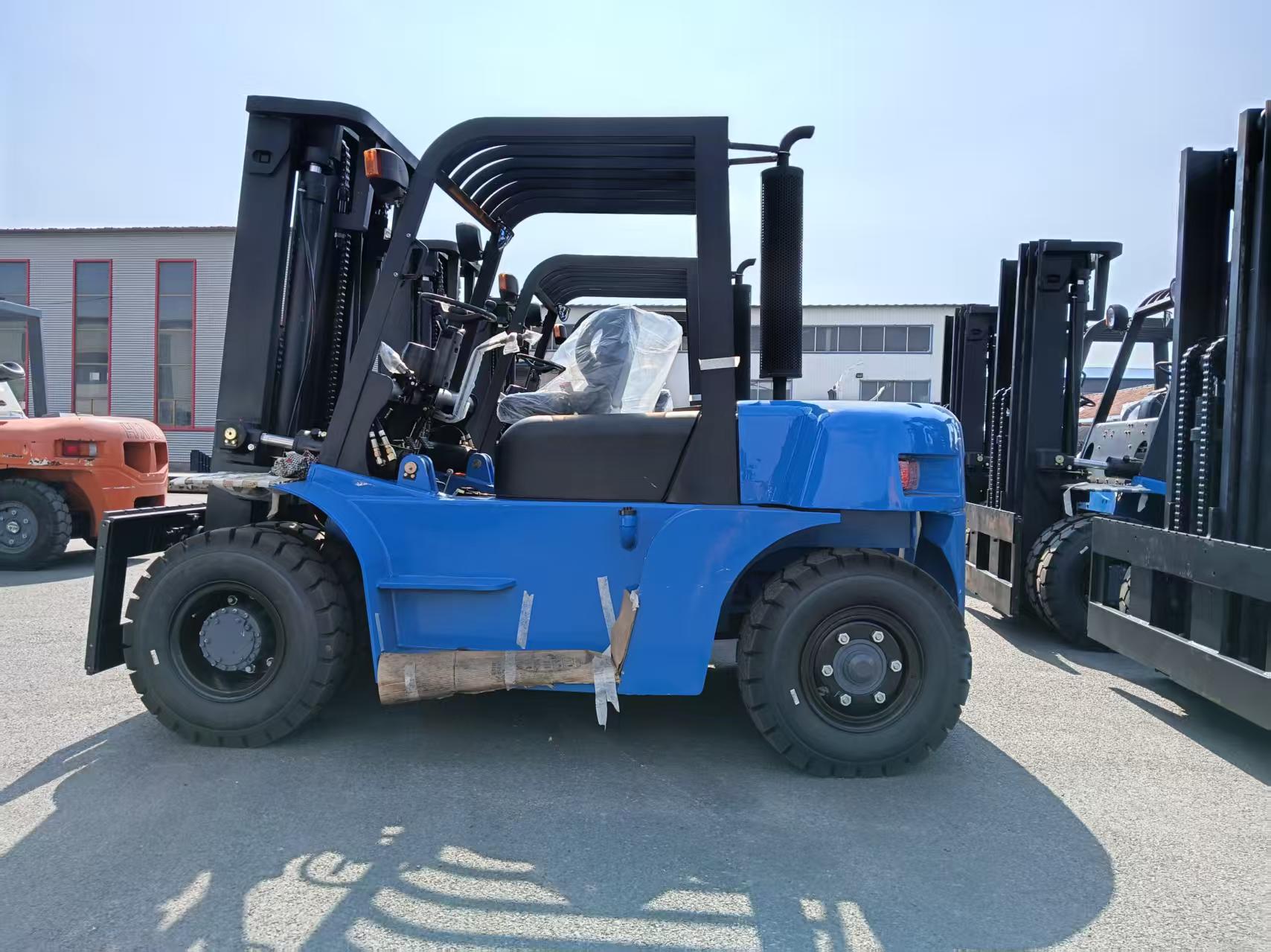

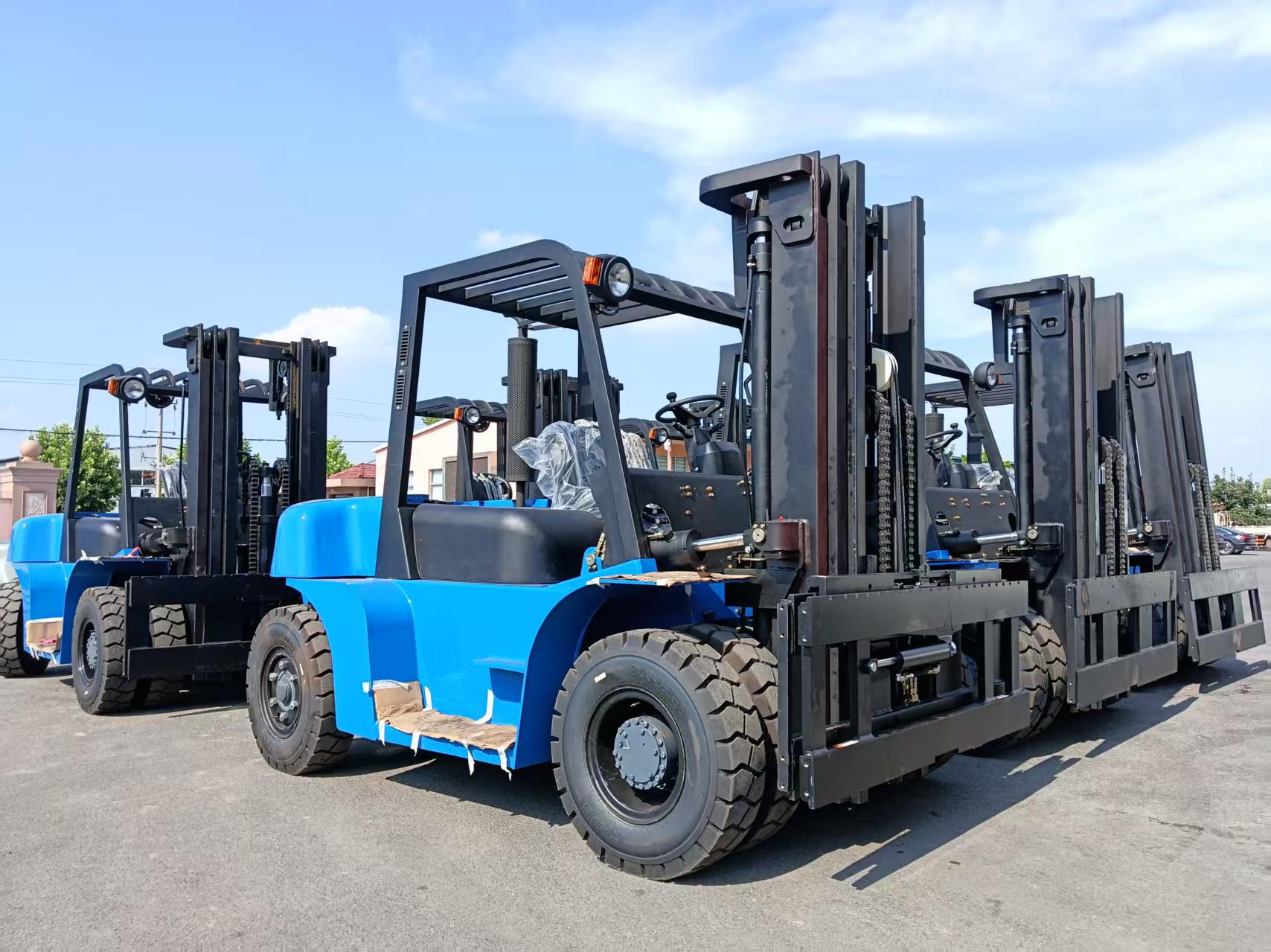

The 5T diesel forklift is a heavy-duty industrial truck rated to lift 5,000 kg (5 tons), designed for demanding material handling in warehouses, ports, construction sites, and logistics operations. MAIHUI manufactures the 5T diesel forklift as part of its CPC30/35/40/50 series, powered by a reliable diesel engine with a standard 3000 mm lift height and options up to 6000 mm.
Guangdong Maihui Machine Co., Ltd. has produced logistics and material-handling machinery since 1956, exports to more than 160 countries, and holds over 300 patented designs. Below you'll find the complete 5 ton forklift specifications, key features, and guidance on choosing the right model.
A 5T diesel forklift is a counterbalanced forklift powered by a diesel engine and rated to lift a maximum load of 5,000 kilograms (5 tons) at a standard load center of 500–600 mm. It is built for heavy, high-frequency lifting in outdoor and industrial environments where electric models may lack the power or runtime required.
The MAIHUI 5T model (CPC50) is available in two configurations: an economic version and a standard diesel version, giving buyers flexibility on budget and performance.

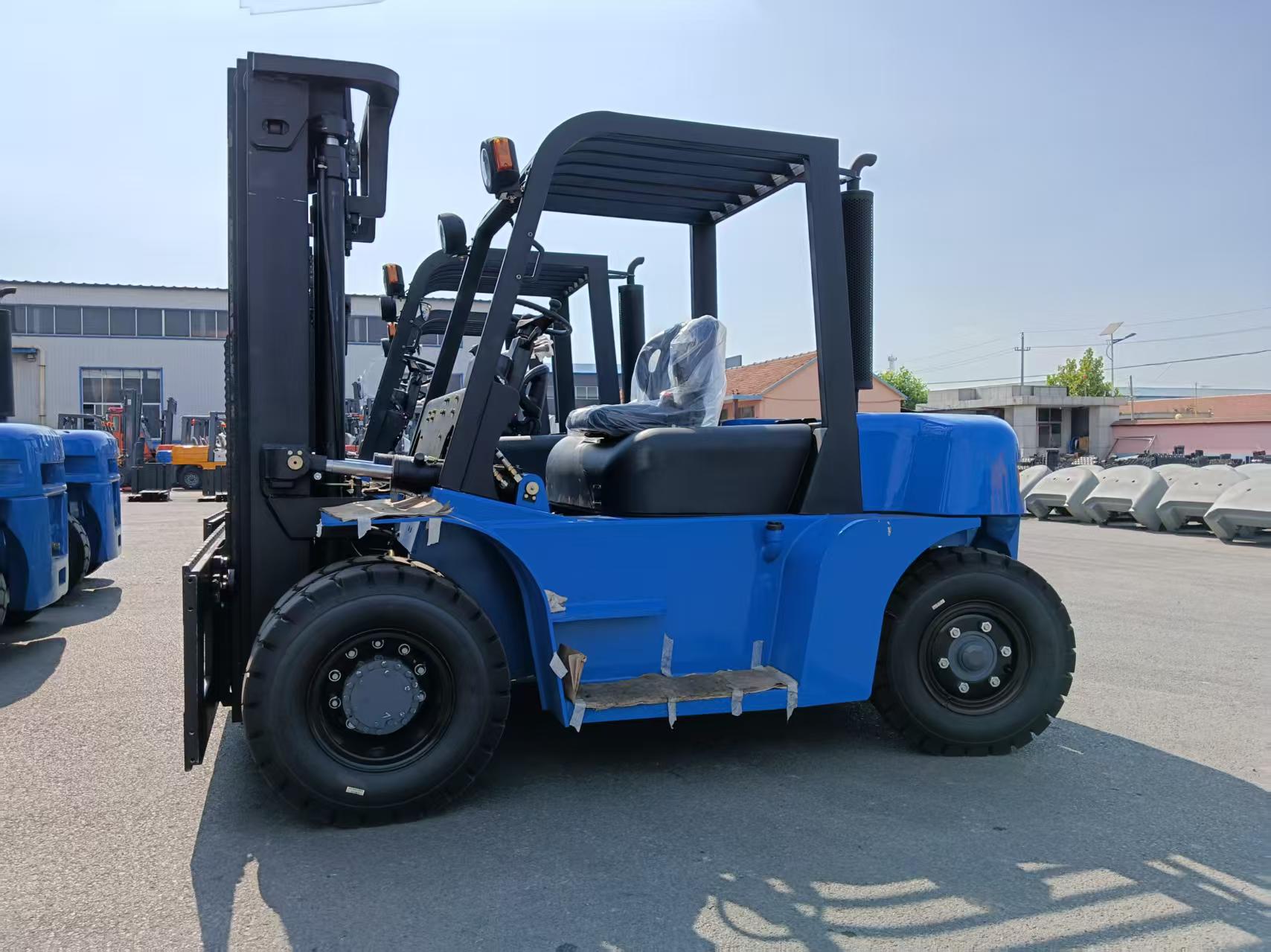

Below are the core 5T diesel forklift specifications for the MAIHUI CPC50, drawn from the full CPC series data sheet:
Specification | CPC50 (Economic) | CPC50 (Standard) |
|---|---|---|
Rated load | 5000 kg | 5000 kg |
Load center | 500 mm | 600 mm |
Lift height | 3000 mm | 3000 mm |
Free lifting height | 100 mm | 200 mm |
Fork size | 1070 × 150 × 50 mm | 1220 × 150 × 55 mm |
Mast tilt angle (front/back) | 45°/8°/20° | 45°/8°/20° |
Min. turning radius | 3150 mm | 3250 mm |
Ground clearance | 140 mm | 200 mm |
Max. travel speed (full load) | 21 km/h | 29 km/h |
Max. lifting speed (full load) | 360 mm/s | 550 mm/s |
Max. traction (full load) | 18 kN | 54 kN |
Max. climbing angle | 20% | 35% |
Full length with forks | 4520 mm | 4660 mm |
Full width | 1400 mm | 1995 mm |
Total weight | 5900 kg | 7980 kg |
Engine model | XINCHAI 4D32G31 | XINCHAI 4DF3 |
Starting rated power | 48 kW | 85 kW |
Gearbox | Mechanical/Hydraulic | Hydraulic |
Working pressure | 20 MPa | 20 MPa |
Available lift heights: 3000 mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm, 5500 mm, and 6000 mm.
5-ton rated capacity: Lifts up to 5,000 kg for pallets, machinery, and bulk loads.
Reliable diesel engine: Powered by XINCHAI diesel engines (48 kW economic / 85 kW standard) for consistent torque and outdoor performance.
Strong gradeability: Climbs grades up to 35% on the standard model, suitable for ramps and uneven terrain.
Adjustable lift height: Standard 3000 mm mast, with taller mast options up to 6000 mm.
Hydraulic transmission option: Smooth control and durability for continuous, heavy-duty cycles.
Certified quality: Built by an ISO9001-certified manufacturer with TÜV GS/CE-certified products.
The MAIHUI CPC series spans 1.5 to 5 tons, so the right model depends on your typical load weight and duty cycle:
Choose the 5T (CPC50) if you routinely lift loads near 4,000–5,000 kg, work on inclines, or need maximum traction and travel speed.
Choose the 3T–4T (CPC30/35/40) if your loads are lighter, aisles are tighter, or you want a smaller turning radius and lower operating weight.
Choose the 1.5T–2.5T (CPC15/20/25) for lighter warehouse and indoor-to-outdoor tasks where a compact footprint matters most.
As a general rule, match the forklift's rated load to your heaviest routine lift plus a safety margin, rather than the absolute maximum you handle.
MAIHUI (Guangdong Maihui Machine Co., Ltd.) is an established manufacturer of forklifts and material-handling equipment. Reasons buyers choose MAIHUI include:
Founded in 1956 with nearly 70 years of manufacturing experience.
Exports to 160+ countries with a global collaboration network.
300+ patented designs and ISO9001, TÜV GS/CE certifications.
Full CPC diesel forklift range from 1.5T to 5T, plus electric forklifts and a wide catalog of warehouse equipment.
To request pricing or specifications, contact MAIHUI at maihui@gdmaihui.com or via WhatsApp at +86-18922018018/+86-13528304218, or view the full Diesel Forklift range.
How much can a 5T diesel forklift lift?
A 5T diesel forklift lifts a maximum rated load of 5,000 kg (5 tons). On the MAIHUI CPC50, this is measured at a load center of 500 mm (economic) or 600 mm (standard version).
What engine does the MAIHUI 5T diesel forklift use?
The MAIHUI CPC50 uses XINCHAI diesel engines: a 48 kW XINCHAI 4D32G31 on the economic model and an 85 kW XINCHAI 4DF3 on the standard model.
What lift heights are available for the 5T diesel forklift?
The 5T diesel forklift comes with a standard 3000 mm lift height, with optional mast heights of 3500 mm, 4000 mm, 4500 mm, 5000 mm, 5500 mm, and 6000 mm.
Is a diesel or electric forklift better for 5-ton loads?
Diesel forklifts are generally better suited for heavy 5-ton loads, outdoor use, ramps, and long continuous shifts, while electric forklifts work best for indoor, lower-emission, and lighter-duty environments. MAIHUI offers both diesel and electric forklift ranges.
How do I get a quote for the 5T diesel forklift?
Contact MAIHUI directly by email at maihui@gdmaihui.com or WhatsApp at +86-18922018018/+86-13528304218 to request a quote, custom specifications, or lead times.
